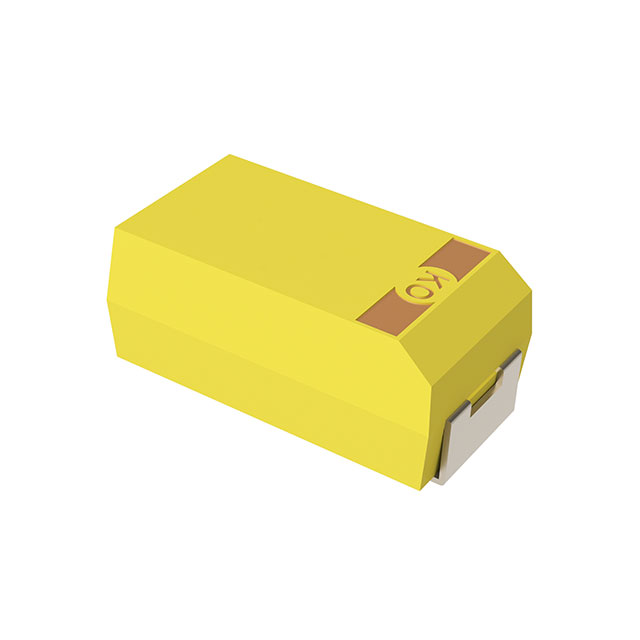

T543B106K025AHE100

Active

KEMET

TANT POLY CAPACITOR, 10UF, 25V, 1411 ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT543B106K025AHE100 Datasheet

T543B106K025AHE100

Active

KEMET

TANT POLY CAPACITOR, 10UF, 25V, 1411 ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsT543B106K025AHE100 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T543B106K025AHE100

Capacitance	10 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	High Reliability
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Ratings	COTS
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	25 VDC

T543B Series

Part	Mounting Type	Type	Manufacturer Size Code	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Features	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Tolerance
KEMET T543B106K025AHE100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	100 mOhm	High Reliability	2000 Hrs	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	10 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B106M025AHS100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	100 mOhm	High Reliability	2000 Hrs	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	10 µF	2.1 mm	0.083 "	COTS	20 %
KEMET T543B107K010AHS1507280	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	150 mOhm	High Reliability	2000 Hrs	10 V	0.11 in	2.8 mm	0.138 "	3.5 mm	100 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B106M025ATE1007280	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	100 mOhm	High Reliability	2000 Hrs	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	10 µF	2.1 mm	0.083 "	COTS	20 %
KEMET T543B336K010AHW025D100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	25 mOhm	High Reliability	2000 Hrs	10 V	0.11 in	2.8 mm	0.138 "	3.5 mm	33 ÁF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B106K025ATS100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	100 mOhm	High Reliability	2000 Hrs	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	10 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B476K010AHW035D100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	35 mOhm	High Reliability	2000 Hrs	10 V	0.11 in	2.8 mm	0.138 "	3.5 mm	47 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B106K025AHE1007280	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	100 mOhm	High Reliability	2000 Hrs	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	10 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B337K2R5AHW035D100	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	35 mOhm	High Reliability	2000 Hrs	2.5 V	0.11 in	2.8 mm	0.138 "	3.5 mm	330 µF	2.1 mm	0.083 "	COTS	10 %
KEMET T543B107K006AHW025	Surface Mount	Molded	B	1411	3528 Metric	105 ░C	-55 °C	25 mOhm	High Reliability	2000 Hrs	6.3 V	0.11 in	2.8 mm	0.138 "	3.5 mm	100 µF	2.1 mm	0.083 "	COTS	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.03
		10	$ 2.60
		50	$ 2.36
		100	$ 2.13
	Digi-Reel®	1	$ 3.03
		10	$ 2.60
		50	$ 2.36
		100	$ 2.13
	Tape & Reel (TR)	2000	$ 2.20
		4000	$ 2.15
Newark	Each (Supplied on Cut Tape)	1	$ 3.15
		10	$ 2.78
		25	$ 2.62
		50	$ 2.46
		100	$ 2.31

Description

General part information

T543B Series

10 µF Molded Tantalum Polymer Capacitor 25 V 1411 (3528 Metric) 100mOhm @ 100kHz
