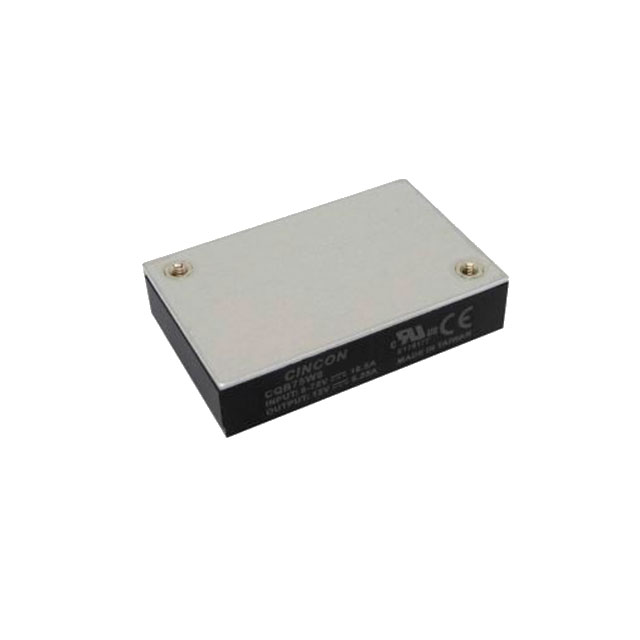

CQB75W8-36S12
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 75W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQB75W8-36S12
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQB75W8-36S12 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | 90 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 109.63 | |
| 5 | $ 105.54 | |||
| 10 | $ 103.83 | |||
| 25 | $ 101.60 | |||
| 50 | $ 99.94 | |||
| 100 | $ 98.31 | |||
Description
General part information
CQB75W8 Series
Isolated Module DC DC Converter 1 Output 12V 6.25A 9V - 75V Input
