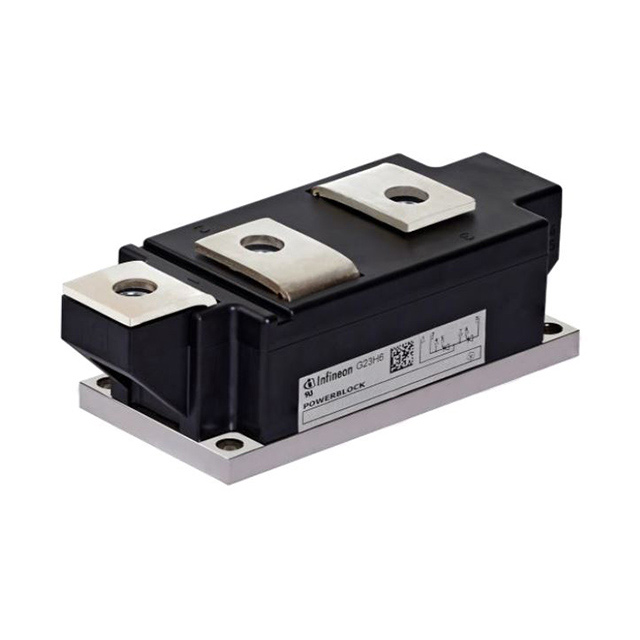

TD600N16KOFTIMHPSA1

Active

Infineon Technologies

1600 V, 600 A POWER BLOCK 60 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

TD600N16KOFTIMHPSA1

Active

Infineon Technologies

1600 V, 600 A POWER BLOCK 60 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TD600N16KOFTIMHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	21000 A
Current - On State (It (AV)) (Max) [Max]	600 A
Current - On State (It (RMS)) (Max)	1050 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.6 kV

TD600N16 Series

Part	Package / Case	Mounting Type	Current - On State (It (RMS)) (Max)	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Operating Temperature
Infineon Technologies TD600N16KOFTIMHPSA1	Module	Chassis Mount	1050 A	1.6 kV	250 mA	600 A	2 V	21000 A	Series Connection - SCR/Diode	125 °C	-40 °C	300 mA	1
Infineon Technologies TD600N16KOFXPSA1	Module	Chassis Mount	1050 A	1.6 kV	250 mA	600 A	2 V	21000 A	Series Connection - SCR/Diode			300 mA	1	125 ¯C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 287.36
Newark	Each	1	$ 299.93
		6	$ 299.40
		10	$ 298.85

Description

General part information

TD600N16 Series

Thyristor/Diode 60 mm Power Block 1600 V, 600 A module for phase control inpressure contact technologywith pre-appliedThermal Interface Materialto achieve a reproductible thermal performance of power electronic systems.
