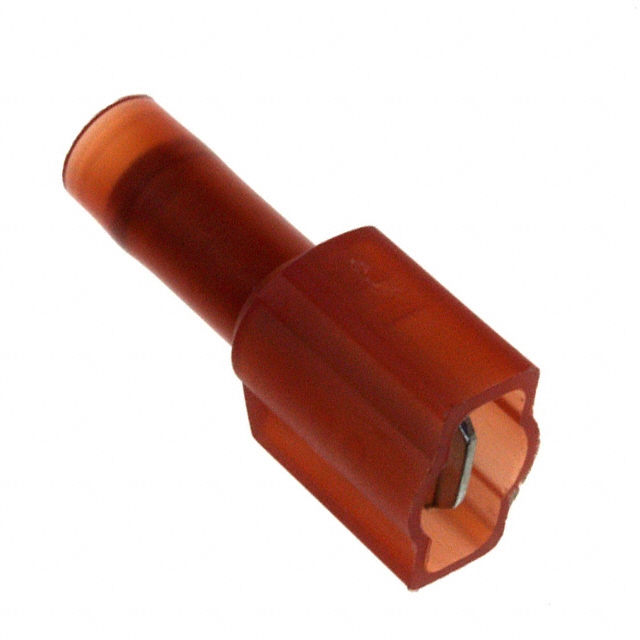

MTI18-250Q

Active

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, MALE QUICK DISCONNECT, 6.35MM X 0.81MM, 0.25" X 0.032"

Search across all available documentation for this part.

Active

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, MALE QUICK DISCONNECT, 6.35MM X 0.81MM, 0.25" X 0.032"

Technical Specifications

Parameters and characteristics for this part

Specification	MTI18-250Q

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Gender	Male
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	24.13 mm
Length - Overall [x]	0.95 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, MALE QUICK DISCONNECT, 6.35MM X 0.81MM, 0.25" X 0.032"

Part	Insulation Diameter	Insulation Diameter [diameter]	Termination	Terminal Type	Gender	Mounting Type	Contact Finish	Color	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Contact Material	Features	Insulation	Wire Gauge [Max]	Wire Gauge [Min]
3M MTI18-250Q	3.68 mm	0.145 "	Crimp	Standard	Male	Free Hanging (In-Line)	Tin	Red	24.13 mm	0.95 in	0.032 in	0.81 mm	6.35 mm	0.25 in	Copper, ETP	Butted Seam	Fully Insulated	22 AWG	17.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated
