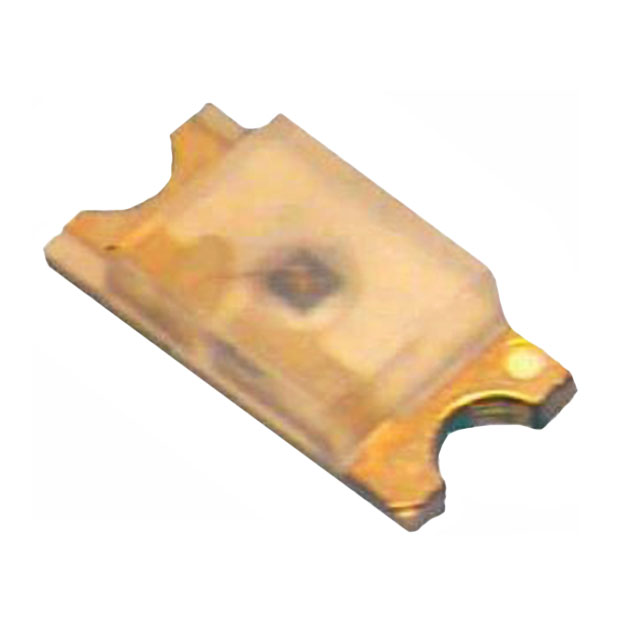

MTSM0012-194-IR

Active

Marktech Optoelectronics

SWIR EMITTER 1200NM 1206 SMD

Search across all available documentation for this part.

Active

Marktech Optoelectronics

SWIR EMITTER 1200NM 1206 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MTSM0012-194-IR	MTSM0012 Series

Current - DC Forward (If) (Max) [Max]	50 mA	50 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Radiant Intensity (Ie) Min @ If [Min]	2.1 mW/sr	2.1 - 11 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	120 °	120 °
Viewing Angle	-	40 °
Voltage - Forward (Vf) (Typ)	1.1 V	1.1 V
Wavelength	1200 nm	1200 nm

SWIR EMITTER 1200NM 1206 SMD DOM

Part	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle [custom]	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - DC Forward (If) (Max) [Max]	Wavelength	Mounting Type	Orientation	Viewing Angle
Marktech Optoelectronics MTSM0012-844-IR	1206 (3216 Metric)	11 mW/sr	40 °	1.1 V	85 °C	-40 °C	Infrared (IR)	50 mA	1200 nm	Surface Mount	Top View
Marktech Optoelectronics MTSM0012-194-IR	1206 (3216 Metric)	2.1 mW/sr		1.1 V	85 °C	-40 °C	Infrared (IR)	50 mA	1200 nm	Surface Mount	Top View	120 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 1200nm 1.1V 50mA 2.1mW/sr @ 50mA (Typ) 120° 1206 (3216 Metric)
