KPTLS-9

Active

Bertech

TAPE MASKING AMBER 9"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KPTLS-9

Active

Bertech

TAPE MASKING AMBER 9"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KPTLS-9

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Tape Type	Masking
Temperature Range	260 °C
Thickness	2 mils
Thickness	0.002 in
Thickness	0.051 mm
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking
Width [x]	9 in
Width [x]	228.6 mm

KPT Series

...

Part	Adhesive	Usage	Backing, Carrier	Temperature Range	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Width [x]	Width [x]	Color	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Width [x]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Width	Width	Width	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Temperature Range [Max]	Temperature Range [Min]	Shelf Life Start	Shelf Life	Width	Width [y]	Width [y]	Width
Bertech KPTLS-9	Silicone	Masking	Polyimide	260 °C	2 mils	0.002 in	0.051 mm	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	9 in	228.6 mm	Amber	Masking	1 mils	0.025 mm	0.001 in
Bertech KPT5-11/16	Silicone	Masking	Polyimide		6.5 mils	0.0065 in	0.165 mm				36 yd	32.9 m	108 ft	0.69 in	17.48 mm	Amber	Masking	1.5 mils	0.038 mm	0.0015 in	0.005 "	5 mils	0.127 mm	0.6875 in	-73 °C	260 °C	-99 °F	500 °F
Bertech KPT2-5/8	Silicone	Masking	Polyimide		88.9 microns	0.0035 "	0.089 mm	2 mils	0.051 mm	0.002 "	36 yd	32.9 m	108 ft			Amber	Masking	1.5 mils	0.038 mm	0.0015 in					-73 °C	260 °C	-99 °F	500 °F	0.625 in	0.63 in	16 mm
Bertech KPT-11/16	Silicone	Masking	Polyimide		2.5 mils	0.0025 "	0.064 mm				36 yd	32.9 m	108 ft	0.69 in	17.48 mm	Amber	Masking	1 mils	0.025 mm	0.001 in				0.6875 in	-73 °C	260 °C	-99 °F	500 °F				0.038 mm	1.5 mils	0.0015 in
Bertech KPTLS-15MM	Silicone	Masking	Polyimide	260 °C	2 mils	0.002 in	0.051 mm	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft			Amber	Masking	1 mils	0.025 mm	0.001 in										0.59 in	15 mm
Bertech KPT-4 1/2	Silicone	Masking	Polyimide		2.5 mils	0.0025 "	0.064 mm				36 yd	32.9 m	108 ft			Amber	Masking	1 mils	0.025 mm	0.001 in					-73 °C	260 °C	-99 °F	500 °F		4.5 "	114.3 mm	0.038 mm	1.5 mils	0.0015 in
Bertech KPT-1/4	Silicone	Masking High Temperature	Polyimide		2.5 mils	0.0025 "	0.064 mm	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft			Amber	Masking	1.5 mils	0.038 mm	0.0015 in									0.25 in	0.25 in	6.35 mm				260 °C	-452 °F -269 °C	Date of Manufacture	18 Months
Bertech KPT5-3/16	Silicone	Masking	Polyimide		6.5 mils	0.0065 in	0.165 mm				36 yd	32.9 m	108 ft			Amber	Masking	1.5 mils	0.038 mm	0.0015 in	0.005 "	5 mils	0.127 mm		-73 °C	260 °C	-99 °F	500 °F	4.78 mm		0.19 in								0.1875 in
Bertech KPT2-8MM	Silicone	Masking	Polyimide		88.9 microns	0.0035 "	0.089 mm	2 mils	0.051 mm	0.002 "	36 yd	32.9 m	108 ft			Amber	Masking	1.5 mils	0.038 mm	0.0015 in					-73 °C	260 °C	-99 °F	500 °F												8 mm	0.31 in
Bertech KPT5-1 3/4	Silicone	Masking	Polyimide		6.5 mils	0.0065 in	0.165 mm				36 yd	32.9 m	108 ft			Amber	Masking	1.5 mils	0.038 mm	0.0015 in	0.005 "	5 mils	0.127 mm		-73 °C	260 °C	-99 °F	500 °F		1.75 in	44.45 mm											1 3/4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 365.93

Description

General part information

KPT Series

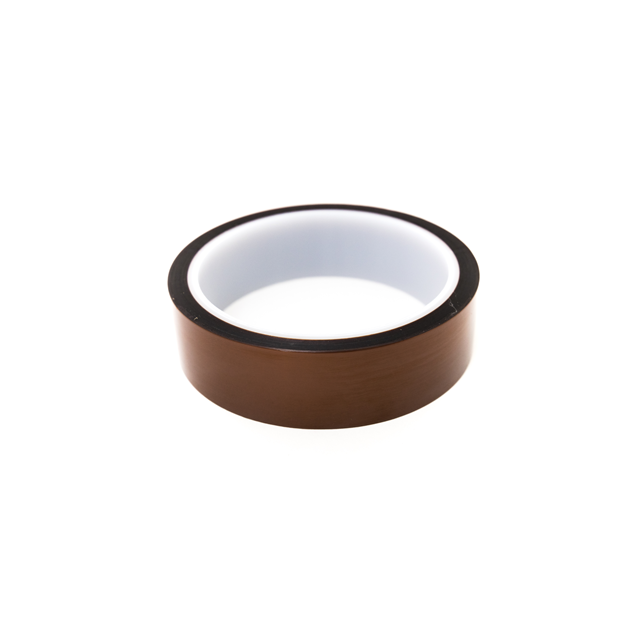

Masking Tape Silicone Adhesive Amber 9.00" (228.60mm) X 108' (32.9m) 36 yds
