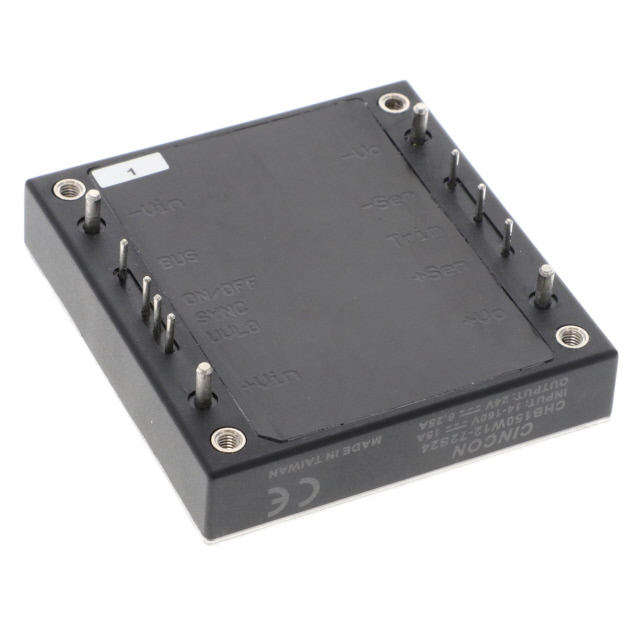

CHB150W12-72S24
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 24V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHB150W12-72S24
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 24V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHB150W12-72S24 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 14 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.70 | |
| 5 | $ 172.04 | |||
| 10 | $ 169.24 | |||
| 25 | $ 165.60 | |||
| 50 | $ 162.90 | |||
Description
General part information
CHB150W12 Series
Isolated Module DC DC Converter 1 Output 24V 6.25A 14V - 160V Input
