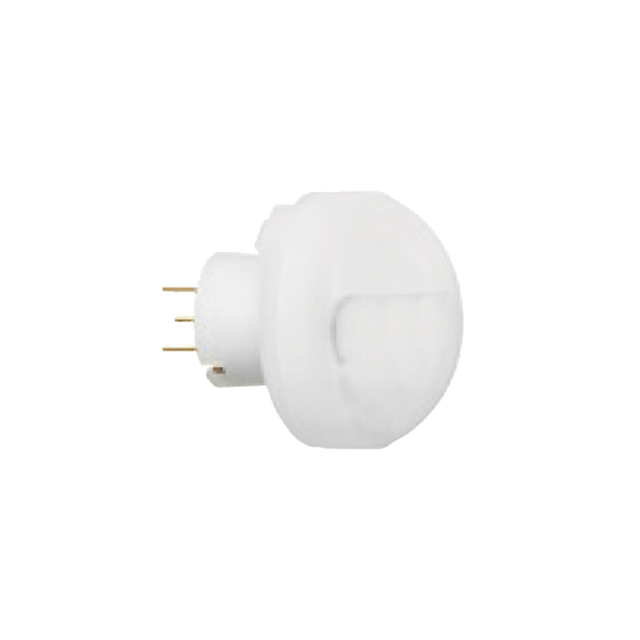

EKMC4604111K

Active

Panasonic Electric Works

SENSOR MOTION PIR WALL MNT WHT

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR MOTION PIR WALL MNT WHT

Technical Specifications

Parameters and characteristics for this part

Specification	EKMC4604111K

Features	Wall Installation Lens, White
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	39.4 '
Sensing Distance	472 "
Sensing Distance	12 m
Sensor Type	PIR (Passive Infrared)
Trigger Type	Internal
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	3 V

Part	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Sensing Distance	Sensor Type	Trigger Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Electric Works EKMC4604111K	Wall Installation Lens White	6 V	3 V	39.4 '	472 "	12 m	PIR (Passive Infrared)	Internal	Module	55 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor PIR (Passive Infrared) 472" (12m) 39.4' Wall Installation Lens, White Module
