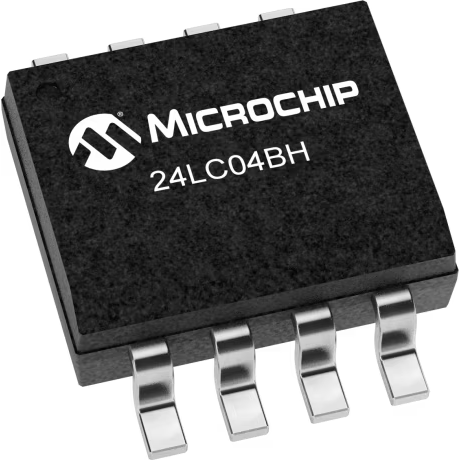

24LC04BH-E/ST

Active

Microchip Technology

4KB I2C COMPATIBLE 2-WIRE SERIAL EEPROM WITH HALF-ARRAY WRITE PROTECTION

Find alt

Alpha

24LC04BH-E/ST

Active

Microchip Technology

4KB I2C COMPATIBLE 2-WIRE SERIAL EEPROM WITH HALF-ARRAY WRITE PROTECTION

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

24LC04BH Series

The Microchip Technology Inc. 24LC04BH is a 4Kb I2C™ compatible Serial EEPROM with half array write protection. The device is organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24LC04BH also has a page write capability for up to 16 bytes of data. The 24LC04BH is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 TDFN and MSOP packages, and is also available in the 5-lead SOT-23 package. All packages are Pb-free and RoHS compliant.

Technical Specifications

Parameters and characteristics for this part

Specification	24LC04BH-E/ST

Access Time	900 ns
Clock Frequency	400 kHz
Memory Depth (Config 1)	256
Memory Format	EEPROM
Memory Instances (Config 2)	2
Memory Interface (Type)	I2C
Memory Organization	256 x 8 x 2
Memory Size	4 Kbit
Memory Type	Non-Volatile
Memory Width (Config 1)	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package Length	0.173 in
Package Name	8-TSSOP
Package Width	4.4 mm
Technology	EEPROM
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	2.5 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	5 ms

24LC04BH Series

Part	Memory Format	Mounting Type	Memory Width (Config 1)	Memory Organization	Memory Depth (Config 1)	Memory Instances (Config 2)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Clock Frequency	Package Width	Package Name	Package Length	Memory Size	Write Cycle Time - Word	Write Cycle Time - Page	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Access Time	Memory Interface (Type)	Memory Type	Package / Case
Microchip Technology 24LC04BHT-I/MS	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4 Kbit	5 ms	5 ms	85 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BHT-I/ST	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	4.4 mm	8-TSSOP	0.173 in	4 Kbit	5 ms	5 ms	85 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BH-I/ST	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	4.4 mm	8-TSSOP	0.173 in	4 Kbit	5 ms	5 ms	85 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BHT-E/MNY	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3 mm	8-TDFN	2 mm	4 Kbit	5 ms	5 ms	125 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile	8-WFDFN Exposed Pad
Microchip Technology 24LC04BH-I/MS	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4 Kbit	5 ms	5 ms	85 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BH-E/SN	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3.9 mm	8-SOIC	0.154 in	4 Kbit	5 ms	5 ms	125 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BHT-E/SN	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3.9 mm	8-SOIC	0.154 in	4 Kbit	5 ms	5 ms	125 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BH-E/ST	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	4.4 mm	8-TSSOP	0.173 in	4 Kbit	5 ms	5 ms	125 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BH-E/MS	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4 Kbit	5 ms	5 ms	125 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
Microchip Technology 24LC04BH-I/SN	EEPROM	Surface Mount	8 bit	256 x 8 x 2	256	2	2.5 V	5.5 V	400 kHz	3.9 mm	8-SOIC	0.154 in	4 Kbit	5 ms	5 ms	85 °C	-40 °C	EEPROM	900 ns	I2C	Non-Volatile
