Q-2I05E00032.5M

Active

Amphenol Custom Cable

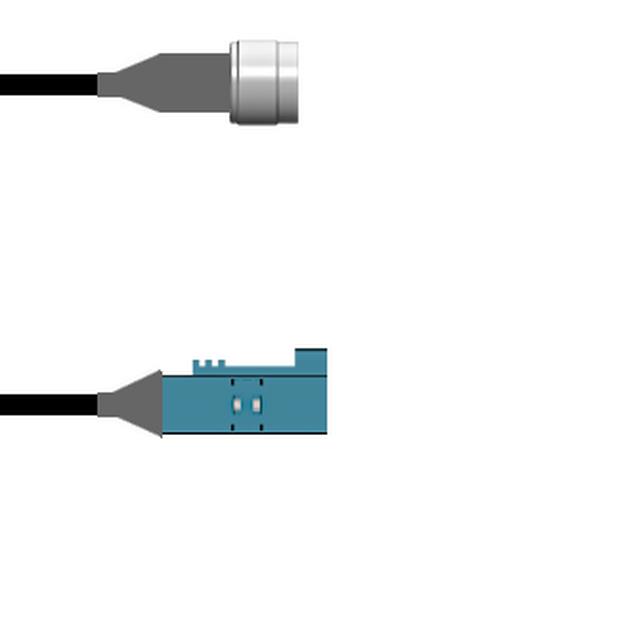

CBL ASSY NTYPE-FAKRA PL-JK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I05E00032.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA PL-JK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I05E00032.5M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2I05E0 Series

Part	Overall Impedance	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	Length [x]	Length [x]	Color	1st Contact Gender	Features	2nd Connector	Style	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length
Amphenol Custom Cable Q-2I05E0003.25M	50 Ohms	Free Hanging (In-Line)	Female	RG-174	9.843 "	250 mm	Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz
Amphenol Custom Cable Q-2I05E0003108i	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-2I05E0003.75M	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	750 mm		29.53 "
Amphenol Custom Cable Q-2I05E0005.75M	50 Ohms	Free Hanging (In-Line)	Female	RG-316			Copper	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	750 mm		29.53 "
Amphenol Custom Cable Q-2I05E00031.5M	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-2I05E0005084i	50 Ohms	Free Hanging (In-Line)	Female	RG-316			Copper	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-2I05E0003084i	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-2I05E0003036i	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	91.44 cm		36 in
Amphenol Custom Cable Q-2I05E0003006i	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	152.4 mm		6 in
Amphenol Custom Cable Q-2I05E00032.5M	50 Ohms	Free Hanging (In-Line)	Female	RG-174			Black	Male	Shielded	Fakra Jack	N-Type to Fakra	Free Hanging (In-Line)	3 GHz	2.5 m	8.2 '	98.4 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.82
		25	$ 63.17
		50	$ 58.52
		100	$ 54.54
		250	$ 51.22

Description

General part information

Q-2I05E0 Series

Cable Assembly Coaxial N-Type to Fakra RG-174 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
