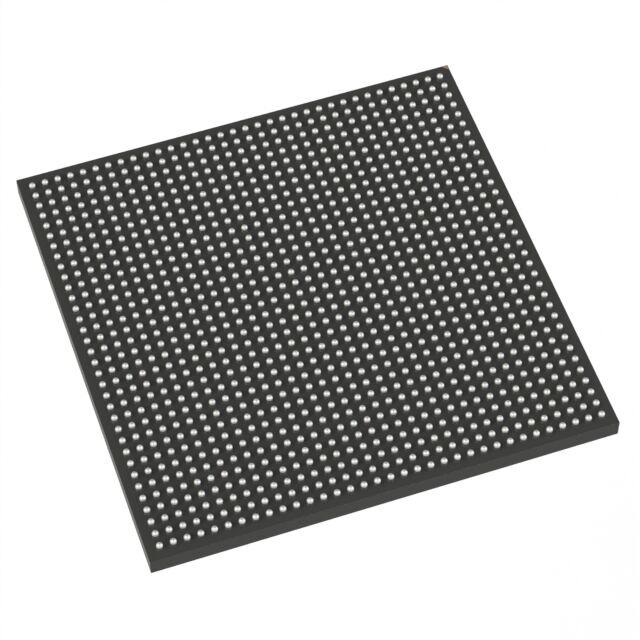

XC7K480T-1FFG1156C

Active

AMD

IC FPGA 400 I/O 1156FCBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA 400 I/O 1156FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC7K480T-1FFG1156C

Mounting Type	Surface Mount
Number of I/O	400
Number of LABs/CLBs	37325
Number of Logic Elements/Cells	477760
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	1156-BBGA, FCBGA
Supplier Device Package	1156-FCBGA (35x35)
Total RAM Bits	35205120
Voltage - Supply [Max]	1.03 V
Voltage - Supply [Min]	0.97 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of LABs/CLBs	Package / Case	Total RAM Bits	Number of I/O	Mounting Type
AMD XC7K480T-2FFG1156C	0 °C	85 °C	477760	1.03 V	0.97 V	1156-FCBGA (35x35)	37325	1156-BBGA FCBGA	35205120	400	Surface Mount
AMD XC7K480T-2FFG901C	0 °C	85 °C	477760	1.03 V	0.97 V	901-FCBGA (31x31)	37325	900-BBGA FCBGA	35205120	380	Surface Mount
AMD XC7K480T-1FFG1156C	0 °C	85 °C	477760	1.03 V	0.97 V	1156-FCBGA (35x35)	37325	1156-BBGA FCBGA	35205120	400	Surface Mount
AMD XC7K480T-2FFG901I	-40 C	100 °C	477760	1.03 V	0.97 V	901-FCBGA (31x31)	37325	900-BBGA FCBGA	35205120	380	Surface Mount
AMD XC7K480T-1FFG1156I	-40 C	100 °C	477760	1.03 V	0.97 V	1156-FCBGA (35x35)	37325	1156-BBGA FCBGA	35205120	400	Surface Mount
AMD XC7K480T-1FFG901C	0 °C	85 °C	477760	1.03 V	0.97 V	901-FCBGA (31x31)	37325	900-BBGA FCBGA	35205120	380	Surface Mount
AMD XC7K480T-L2FFG901I	-40 C	100 °C	477760	1.03 V	0.97 V	901-FCBGA (31x31)	37325	900-BBGA FCBGA	35205120	380	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5607.50

General part information

Kintex®-7 Field Programmable Gate Array (FPGA) IC 400 35205120 477760 1156-BBGA, FCBGA
