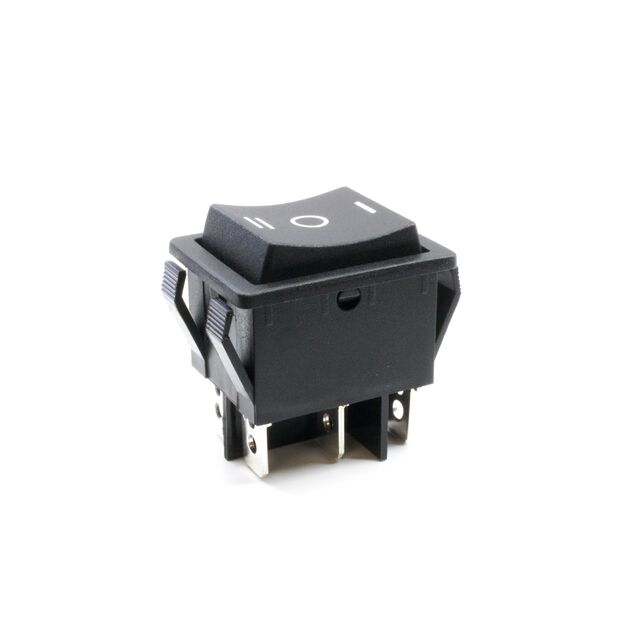

R5IBLKBLKBF0
ActiveE-Switch
SWITCH ROCKER DPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R5IBLKBLKBF0
ActiveE-Switch
SWITCH ROCKER DPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R5IBLKBLKBF0 |
|---|---|
| Actuator Marking | I O II |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 150 | $ 2.59 | |
Description
General part information
R5IBLKBL Series
Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
