Specification	IDSR045.T

Applications	Electrical, Industrial
Approval Agency	CE, UL, CSA
Breaking Capacity (AC)	200 kA
Breaking Capacity (DC)	20 kA
Class	RK5
Current Rating	45 A
Features	Indicating
Fuse Type	Cartridge
Mounting Type	Requires Holder
Package / Case	Alarm Indicating, Cylindrical
Response Time	Slow Blow
Size / Dimension Diameter	1.063 in
Size / Dimension Length	5.5 in
Voltage Rating - AC	600 VAC
Voltage Rating - DC	600 V

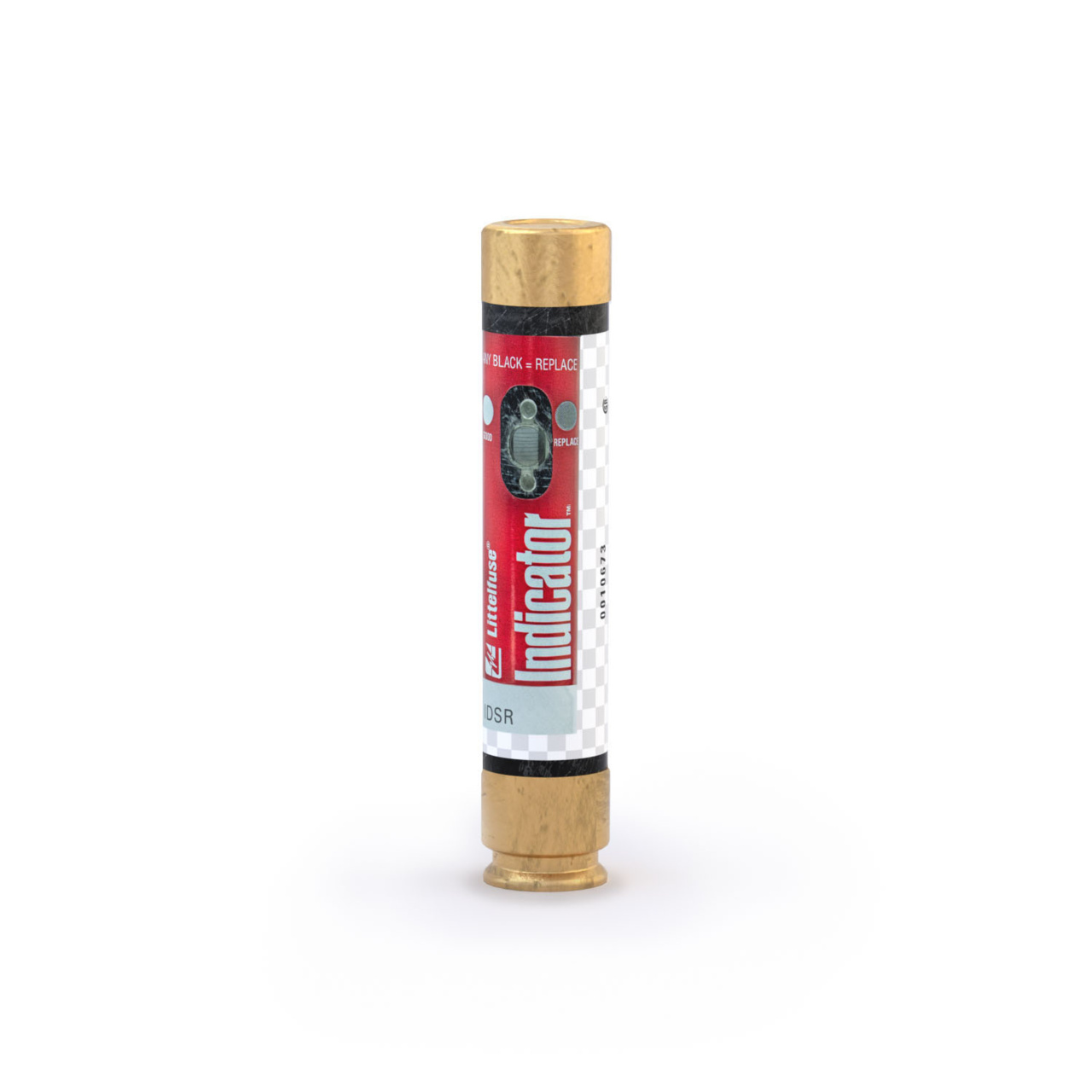

IDSR045 Series

FUS 600VAC/DC T/D IND RK5 45A

Part	Current Rating	Breaking Capacity (AC)	Breaking Capacity (DC)	Applications	Fuse Type	Class	Mounting Type	Size / Dimension Diameter	Size / Dimension Length	Package / Case	Response Time	Features	Voltage Rating - AC	Approval Agency	Voltage Rating - DC
LITTELFUSE IDSR045.T	45 A	200 kA	20 kA	Electrical Industrial	Cartridge	RK5	Requires Holder	1.063 in	5.5 in	Alarm Indicating Cylindrical	Slow Blow	Indicating	600 VAC	CE CSA UL	600 V
