BTE-120-04-L-D-A

Active

Samtec Inc.

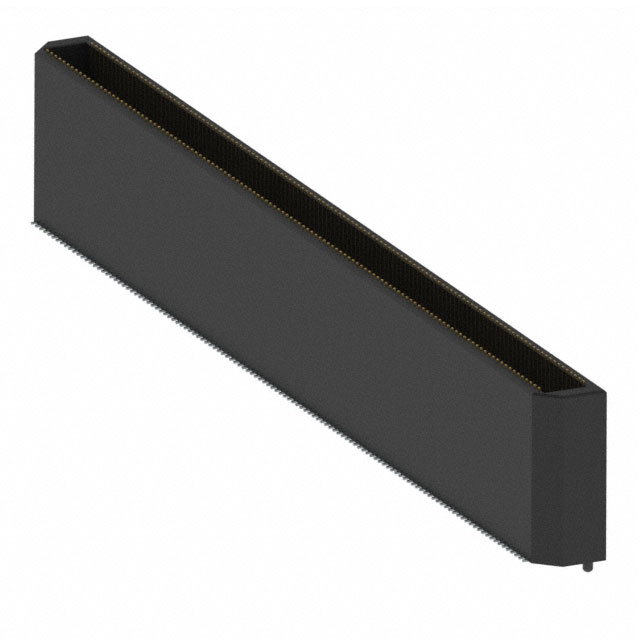

CONN HDR 240POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BTE-120-04-L-D-A

Active

Samtec Inc.

CONN HDR 240POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-120-04-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.601 in
Height Above Board	15.27 mm
Mated Stacking Heights	16.1 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-120 Series

Part	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Mated Stacking Heights [z]	Height Above Board	Height Above Board
Samtec Inc. BTE-120-05-F-D-A	Board Guide	Surface Mount	3 Áin	0.076 Ám	240	Header Outer Shroud Contacts	0.719 in	18.26 mm	Gold	0.8 mm	0.031 in	19.1 mm	2
Samtec Inc. BTE-120-02-F-D-A	Board Guide	Surface Mount	3 Áin	0.076 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in		2	8.03 mm	7.06 mm	0.278 "
Samtec Inc. BTE-120-01-H-D-LC		Surface Mount	30 Áin	0.76 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in	5.03 mm	2		4.06 mm	0.16 in
Samtec Inc. BTE-120-07-L-D-A	Board Guide	Surface Mount	10 Áin	0.25 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in	25 mm	2		24.23 mm	0.954 in
Samtec Inc. BTE-120-05-F-D-A-K	Board Guide	Surface Mount	3 Áin	0.076 Ám	240	Header Outer Shroud Contacts	0.719 in	18.26 mm	Gold	0.8 mm	0.031 in	19.1 mm	2
Samtec Inc. BTE-120-02-L-D-A	Board Guide	Surface Mount	10 Áin	0.25 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in		2	8.03 mm	7.06 mm	0.278 "
Samtec Inc. BTE-120-03-F-D-A	Board Guide	Surface Mount	3 Áin	0.076 Ám	240	Header Outer Shroud Contacts	0.396 in	10.06 mm	Gold	0.8 mm	0.031 in	11.03 mm	2
Samtec Inc. BTE-120-04-L-D-A	Board Guide	Surface Mount	10 Áin	0.25 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in	16.1 mm	2		15.27 mm	0.601 in
Samtec Inc. BTE-120-01-L-D-A-K	Board Guide	Surface Mount	10 Áin	0.25 Ám	240	Header Outer Shroud Contacts			Gold	0.8 mm	0.031 in	5.03 mm	2		4.06 mm	0.16 in
Samtec Inc. BTE-120-05-L-D-A-K	Board Guide	Surface Mount	10 Áin	0.25 Ám	240	Header Outer Shroud Contacts	0.719 in	18.26 mm	Gold	0.8 mm	0.031 in	19.1 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 25.50

Description

General part information

BTE-120 Series

240 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
