LT8386JV#PBF
Active60V, 3A SILENT SWITCHER SYNCHRONOUS, STEP-UP LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
LT8386JV#PBF
Active60V, 3A SILENT SWITCHER SYNCHRONOUS, STEP-UP LED DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LT8386JV#PBF |
|---|---|
| Current - Output / Channel | 3 A |
| Dimming | PWM |
| Frequency [Max] | 2 MHz |
| Frequency [Min] | 200 kHz |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-TFQFN Exposed Pad, 26 Leads |
| Qualification | AEC-Q100 |

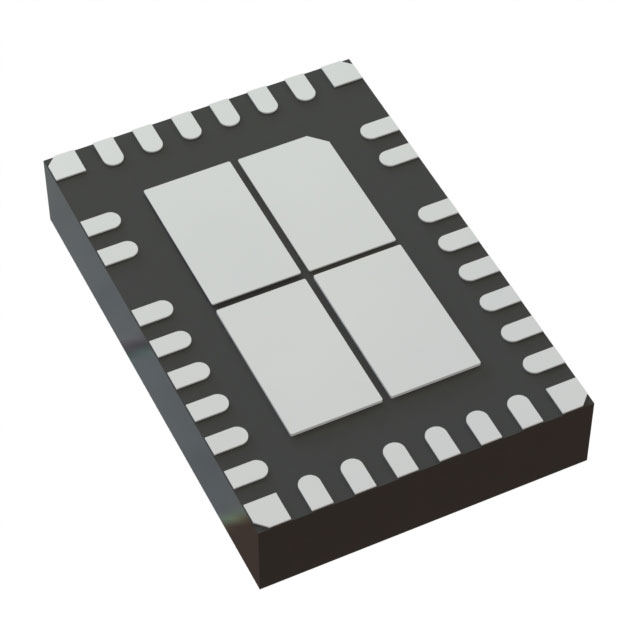

| Supplier Device Package | 28-LQFN (4x5) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 56 V |
| Voltage - Output [Min] | 1.2 V |
| Voltage - Supply (Max) [Max] | 56 V |
| Voltage - Supply (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.87 | |
| 10 | $ 6.70 | |||
| 25 | $ 5.87 | |||
| 100 | $ 4.93 | |||
| 490 | $ 4.50 | |||
Description
General part information
LT8386 Series
The LT8386 is a monolithic, synchronous, step-up DC-to-DC converter that utilizes fixed frequency, peak current control and provides PWM dimming for a string of LEDs. The LED current is programmed by an analog voltage or digital pulses at the CTRL pin. The LT8386 will maintain 2% current regulation through an external sense resistor over a wide range of output voltages.The LT8386 features Silent Switcher®technology designed to minimize EMI/EMC emissions with high efficiency. The switching frequency is programmable from 200kHz to 2MHz by an external resistor at the RT pin or by an external clock applied at the SYNC/SPRD pin. With the optional spread spectrum frequency modulation enabled, the frequency varies from 100% to 125% to reduce EMI.The LT8386 includes a driver for an external high side PMOS for PWM dimming. The 60V rated LT8386 is pin-to-pin compatible with the LT3922 and LT3922-1.APPLICATIONSAutomotive and Industrial LightingHeads Up Display (HUD)/Machine Vision
