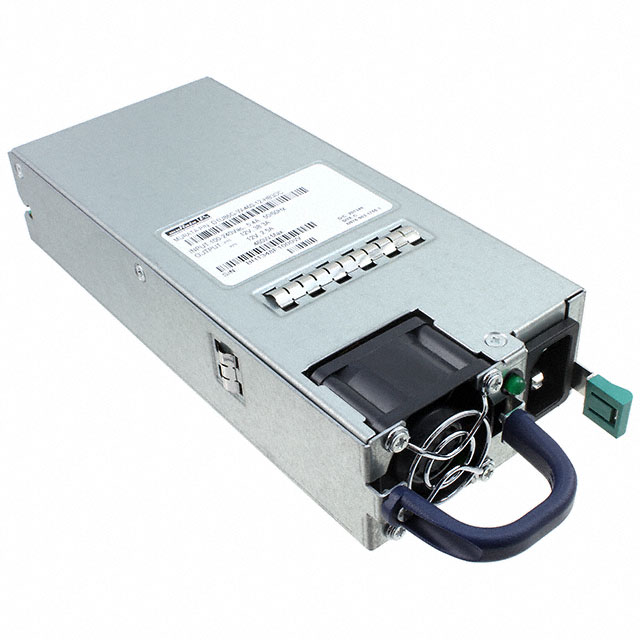

D1U86G-W-460-12-HB3DC
ActiveMurata Power Solutions Inc.
AC/DC FRONT END POWER SUPPLY (PSU), 2 OUTPUT, FIXED, 460 W, 12 V, 38.3 A
Deep-Dive with AI
Search across all available documentation for this part.
D1U86G-W-460-12-HB3DC
ActiveMurata Power Solutions Inc.
AC/DC FRONT END POWER SUPPLY (PSU), 2 OUTPUT, FIXED, 460 W, 12 V, 38.3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D1U86G-W-460-12-HB3DC | D1U86G-W Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output 1 | 38.3 A | 38.3 A |
| Efficiency | 92 % | 92 % |
| Features | I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input | I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input |
| Mounting Type | Rack Mount | Rack Mount |
| Number of Outputs | 1 | 1 |
| Power (Watts) | 460 W | 460 W |
| Size / Dimension [x] | 241.6 mm | 241.6 mm |
| Size / Dimension [x] | 9.52 in | 9.52 in |
| Size / Dimension [y] | 3.4 in | 3.4 in |
| Size / Dimension [y] | 86.4 mm | 86.4 mm |
| Size / Dimension [z] | 40.5 mm | 40.5 mm |
| Size / Dimension [z] | 1.6 " | 1.6 " |
| Type | Front End | Front End |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 45 | $ 242.45 | |
D1U86G-W Series
AC/DC FRONT END POWER SUPPLY (PSU), 2 OUTPUT, FIXED, 460 W, 12 V, 38.3 A
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Number of Outputs | Applications | Type | Current - Output 1 | Mounting Type | Voltage - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D1U86G-W-460-12-HB3DC | 90 VAC | 264 VAC | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | 3.4 in | 40.5 mm | 86.4 mm | 241.6 mm | 9.52 in | 1.6 " | 460 W | 1 | ITE (Commercial) | Front End | 38.3 A | Rack Mount | 12 V | 92 % |
Murata Power Solutions Inc. D1U86G-W-460-12-HB3DC | ||||||||||||||||||
Murata Power Solutions Inc. D1U86G-W-460-12-HB4DC | 90 VAC | 264 VAC | 3000 V | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | 3.4 in | 40.5 mm | 86.4 mm | 241.6 mm | 9.52 in | 1.6 " | 460 W | 1 | ITE (Commercial) | Front End | 38.3 A | Rack Mount | 12 V | 92 % |
Description
General part information
D1U86G-W Series
Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
