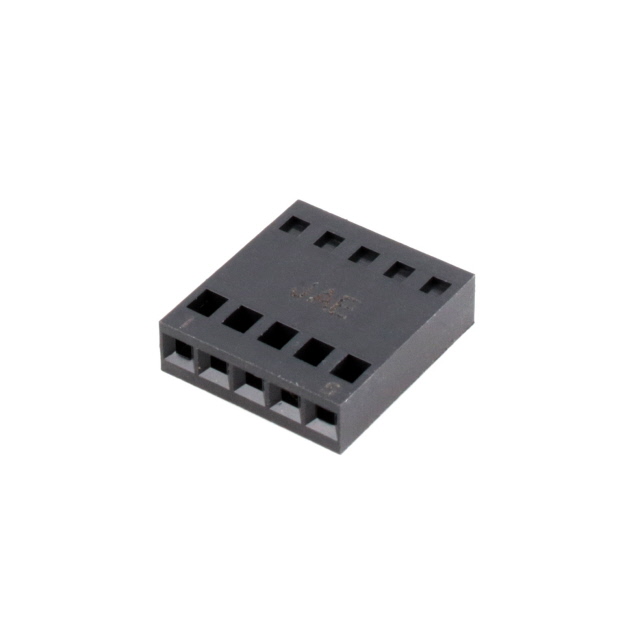

Specification	PS-5SD-S4C2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Number of Rows	1
Pitch	0.1 in

PS-5SD-S Series

Part	Mounting Type	Contact Type	Number of Positions	Contact Finish - Post	Fastening Type	Contact Length - Post	Current Rating	Material Flammability Rating	Pitch - Mating	Termination	Insulation Color	Connector Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Note	Contact Termination	Color	Pitch
JAE Electronics PS-5SD-S4TS1-1	Through Hole	Female Socket	5	Gold	Push-Pull	0.115 in	3 A	UL94 V-0	0.1 in	Solder	Black	Receptacle	1	-55 °C	85 °C	0.374 in	Gold	3.9 µin	All	Board	Copper Alloy	Square	Polybutylene Terephthalate (PBT)	Flash	Flash
JAE Electronics PS-5SD-S4C2	Free Hanging (In-Line)	Female Socket	5									Receptacle	1										Polybutylene Terephthalate (PBT)			Contacts Not Included	Crimp	Black	0.1 in
JAE Electronics PS-5SD-S4T1-1	Right Angle Through Hole	Female Socket	5	Gold	Push-Pull	0.115 in	3 A	UL94 V-0	0.1 in	Solder	Black	Receptacle	1	-55 °C	85 °C	0.148 in	Gold	3.9 µin	All	Board	Copper Alloy	Square	Polybutylene Terephthalate (PBT)	Flash	Flash
