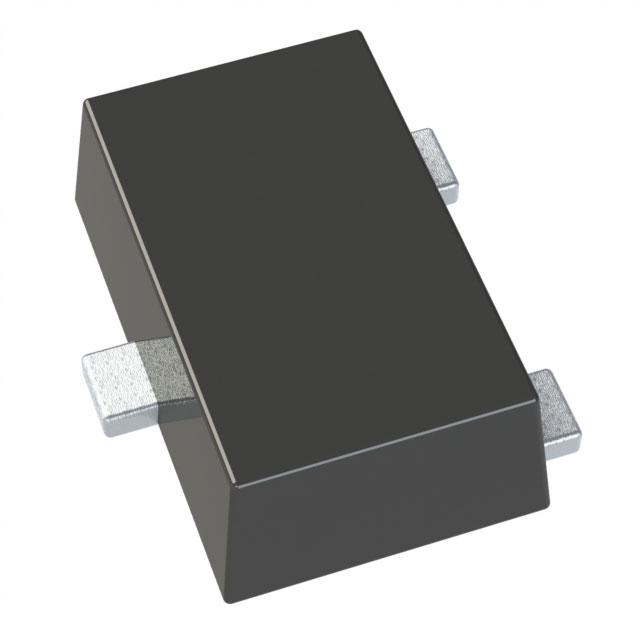

ZXTR2105FFQ-7

Active

Diodes Inc

60V INPUT, 5V 30MA AUTOMOTIVE REGULATOR TRANSISTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

ZXTR2105FFQ-7

Active

Diodes Inc

60V INPUT, 5V 30MA AUTOMOTIVE REGULATOR TRANSISTOR

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZXTR2105FFQ-7	ZXTR2105 Series

Current - Output	15 mA	15 - 89 mA
Current - Quiescent (Iq)	6.7 mA	6.7 - 800 µA
Current - Supply (Max)	-	6.7 mA
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 °C	-65 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	SOT-23-3 Flat Leads	SOT-23-3, TO-236-3, SC-59, SOT-23-3 Flat Leads
PSRR	46 dB	46 dB
Qualification	AEC-Q101	AEC-Q101, AEC-Q100
Supplier Device Package	SOT-23F	SOT-23-3, SOT-23F
Voltage - Input (Max) [Max]	60 V	60 V
Voltage - Output (Min/Fixed)	5 V	5 V

ZXTR2105 Series

60V INPUT, 5V 30mA Automotive REGULATOR TRANSISTOR

Part	Number of Regulators	Grade	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Qualification	Current - Output	Package / Case	Current - Supply (Max) [Max]	Output Configuration	Supplier Device Package	PSRR	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
Diodes Inc ZXTR2105FQ-7	1	Automotive	60 V	5 V	800 µA	AEC-Q101	89 mA	SC-59, SOT-23-3, TO-236-3	6.7 mA	Positive	SOT-23-3	46 dB	Surface Mount	150 °C	-65 °C	1.81 mOhm
Diodes Inc ZXTR2105FFQ-7	1	Automotive	60 V	5 V	6.7 mA	AEC-Q101	15 mA	SOT-23-3 Flat Leads		Positive	SOT-23F	46 dB	Surface Mount	150 °C	-65 °C	1.81 mOhm
Diodes Inc ZXTR2105F-7	1	Automotive	60 V	5 V	800 µA	AEC-Q101	89 mA	SC-59, SOT-23-3, TO-236-3	6.7 mA	Positive	SOT-23-3	46 dB	Surface Mount	150 °C	-65 ░C	1.81 mOhm
Diodes Inc ZXTR2105FF-7	1	Automotive	60 V	5 V		AEC-Q100	89 mA	SOT-23-3 Flat Leads	6.7 mA	Positive	SOT-23F	46 dB	Surface Mount	150 °C	-65 °C	1.81 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.40
		100	$ 0.24
		500	$ 0.22
		1000	$ 0.15
	Digi-Reel®	1	$ 0.51
		10	$ 0.40
		100	$ 0.24
		500	$ 0.22
		1000	$ 0.15
	Tape & Reel (TR)	3000	$ 0.14
		6000	$ 0.13
		9000	$ 0.12
		30000	$ 0.12
		75000	$ 0.11

Description

General part information

ZXTR2105 Series

The ZXTR2105FQ monolithically integrates a transistor, Zener diode and resistor to function as a linear regulator. The device regulates with a 5V nominal output at 15mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT23 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
