Q-1Z04B0001003M

Active

Amphenol Custom Cable

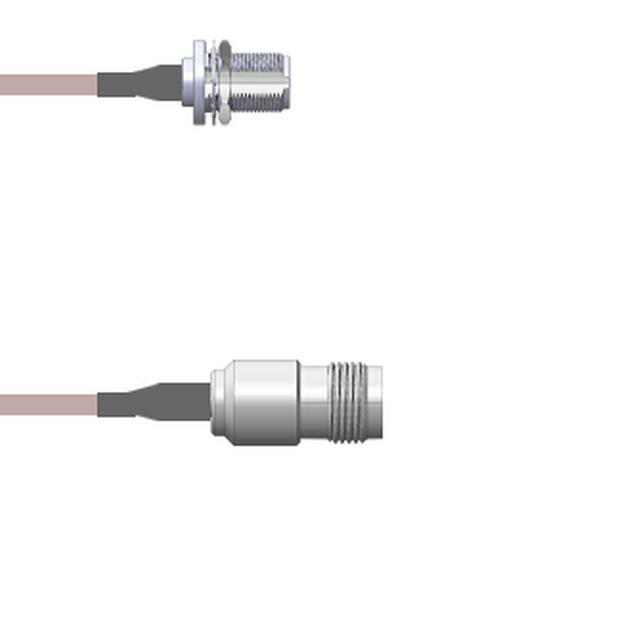

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z04B0001003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z04B0001003M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-1Z04B0 Series

Part	Overall Impedance	Frequency - Max [Max]	2nd Contact Gender	Features	Length	Length	Length	Color	1st Connector Mounting Type	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Feature	Cable Type	1st Contact Gender	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z04B00012.5M	50 Ohms	11 GHz	Female	Shielded	8.2 '	98.4 in	2.5 m	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001048i	50 Ohms	11 GHz	Female	Shielded	4 ft	48 in	1200 mm	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001006i	50 Ohms	11 GHz	Female	Shielded		6 in	152.4 mm	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001060i	50 Ohms	11 GHz	Female	Shielded	5 ft	5 '	1.5 m	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001003M	50 Ohms	11 GHz	Female	Shielded	9.8 '	118.1 in	3 m	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001036i	50 Ohms	11 GHz	Female	Shielded		36 in	91.44 cm	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001.75M	50 Ohms	11 GHz	Female	Shielded		29.53 "	750 mm	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001108i	50 Ohms	11 GHz	Female	Shielded	9 ft	108 in	2.7 m	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack
Amphenol Custom Cable Q-1Z04B0001.25M	50 Ohms	11 GHz	Female	Shielded				Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack	9.843 "	250 mm
Amphenol Custom Cable Q-1Z04B0001012i	50 Ohms	11 GHz	Female	Shielded		12 "	304.8 mm	Copper	Panel Mount	N-Type Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-178	Female	TNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 98.70
		25	$ 92.09
		50	$ 85.47
		100	$ 79.80
		250	$ 75.08

Description

General part information

Q-1Z04B0 Series

Cable Assembly Coaxial N-Type to TNC RG-178 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
