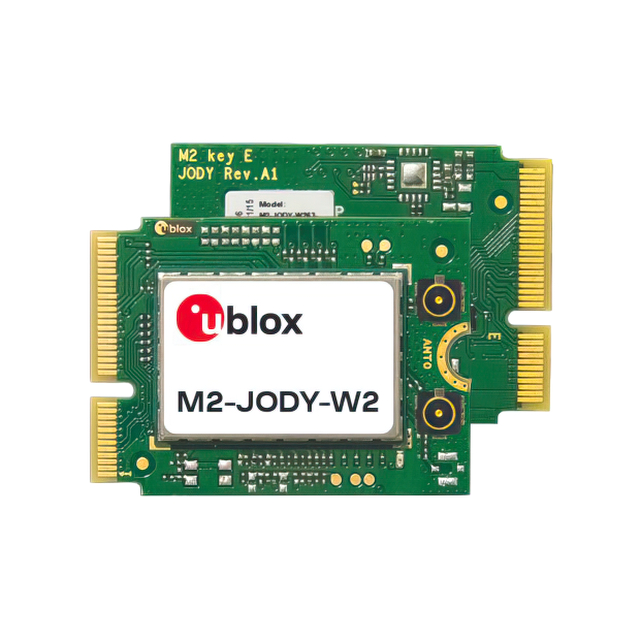

M2-JODY-W263-00C

Active

u-blox

RF TXRX MOD BT CHIP + U.FL CARD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD BT CHIP + U.FL CARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth v5.2 + EDR Transceiver Module 2.4GHz, 5GHz Integrated, Chip + U.FL Card Edge

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M2-JODY-W263-00C	M2-JODY Series

Antenna Type	Chip, U.FL, Integrated	U.FL, PCB (x3), Chip, Integrated
Data Rate	433 Mbps	1.2 - 433 Mbps
Frequency	5 GHz, 2.4 GHz	2.4 - 5 GHz
Mounting Type	Card Edge	Card Edge
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	18 dBm	18 - 19 dBm
Protocol	Bluetooth v5.2 + EDR, 802.11a/b/g/-c	802.11ax, Bluetooth v5.3 + EDR, Bluetooth v5.2 + EDR, 802.11a/b/g/-c
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Serial Interfaces	UART, GPIO, SPI, HCI, PCM, SDIO	I2S, GPIO, SDIO, HCI, UART, PCM, SPI
Utilized IC / Part	NXP 88W8987	NXP Q9098, NXP 88W8987
Voltage - Supply	1.8 V, 3.3 V	1.8 - 3.3 V

RF TXRX MOD BT I U.FL (X3) CARD

Part	Voltage - Supply	Mounting Type	Antenna Type	Power - Output	Data Rate	Package / Case	RF Family/Standard	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Utilized IC / Part	Protocol
u-blox M2-JODY-W377-10C	1.8 V, 3.3 V	Card Edge	PCB (x3), U.FL	19 dBm	2 Mbps	Module	Bluetooth, WiFi	2.4 GHz, 5 GHz	85 °C	-40 °C	GPIO, HCI, I2S, PCM, SDIO, UART	NXP Q9098	802.11ax, Bluetooth v5.3 + EDR
u-blox M2-JODY-W263-00C	1.8 V, 3.3 V	Card Edge	Chip, Integrated, U.FL	18 dBm	433 Mbps	Module	Bluetooth, WiFi	2.4 GHz, 5 GHz	85 °C	-40 °C	GPIO, HCI, PCM, SDIO, SPI, UART	NXP 88W8987	802.11a/b/g/-c, Bluetooth v5.2 + EDR
u-blox M2-JODY-W377-00C	1.8 V, 3.3 V	Card Edge	Chip, Integrated, U.FL	19 dBm	1.2 Gbps	Module	Bluetooth, WiFi	2.4 GHz, 5 GHz	85 °C	-40 °C	GPIO, HCI, I2S, PCM, SDIO, UART	NXP Q9098	802.11ax, Bluetooth v5.3 + EDR
