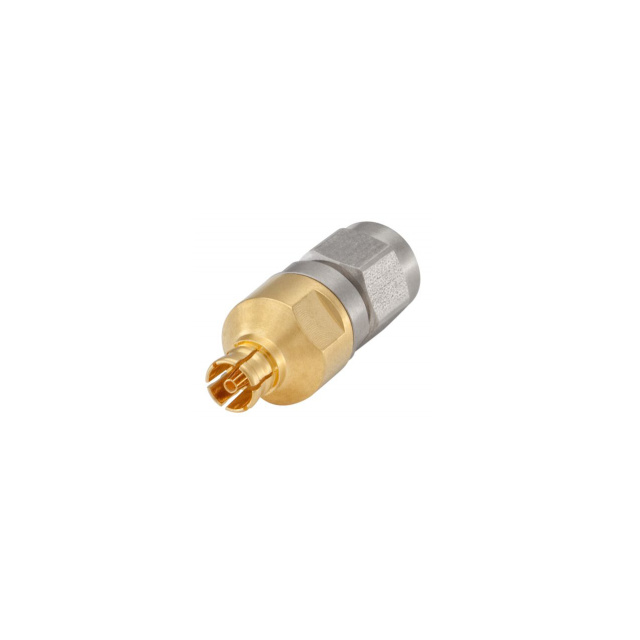

119K132-S00L5

Active

Rosenberger

PSMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PSMP ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	119K132-S00L5

Adapter Series	PSMP to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	PSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Insertion Loss	0.16 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Series	Style	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Dielectric Material	Frequency - Max [Max]	Impedance	Fastening Type	Insertion Loss	Mounting Type	Center Contact Plating	Body Finish	Conversion Type	Convert From (Adapter End)	Body Material	Center Gender	Convert To (Adapter End)
Rosenberger 119K132-S00L5	PSMP to SMA	Straight	Beryllium Copper	155 °C	-55 °C	Plug to Jack	Polytetrafluoroethylene (PTFE)	10 GHz	50 Ohms	Snap-On	0.16 dB	Free Hanging (In-Line)	Gold	Gold	Same Series	PSMP Jack Female Socket	Beryllium Copper Stainless Steel
Rosenberger 119K132-K00L5	SMA to PSMP	Straight	Beryllium Copper	155 °C	-55 °C	Jack to Jack	Polytetrafluoroethylene (PTFE)	10 GHz	50 Ohms	Snap-On Threaded		Free Hanging (In-Line)	Gold	Gold; Passivated	Between Series	PSMP Jack Female Socket	Beryllium Copper Stainless Steel	Female to Female	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7	$ 111.86

General part information

Adapter Coaxial Connector PSMP Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
