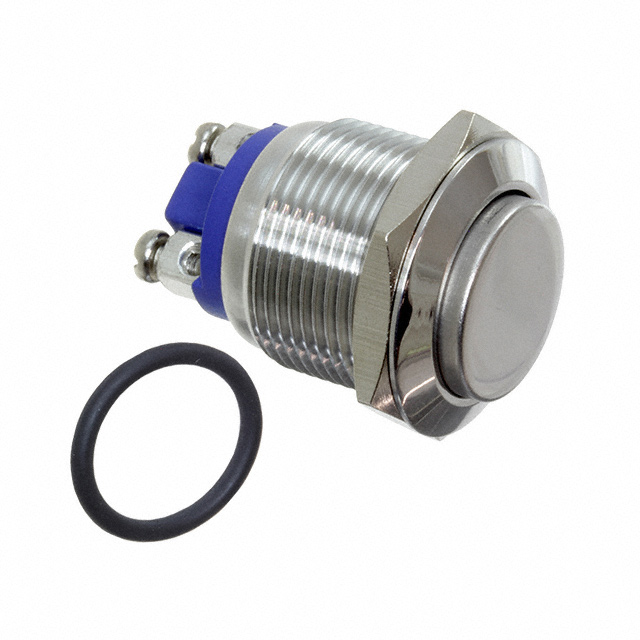

PV1H640SS

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV1H640SS

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Electrical Life	Mechanical Life	Voltage Rating - DC	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Actuator Marking	Termination Style	Ingress Protection	Color - Actuator/Cap	Circuit
E-Switch PV1H640SS	2 A	Panel Mount Front	55 °C	-20 C	Off-Mom	200000 Cycles	1000000 Cycles	48 V	Button Round	Anti-Vandal	19 mm	No Marking	Screw Terminal	IP65 - Dust Tight Water Resistant	Silver	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
