936201-1

Active

TE Connectivity AMP Connectors

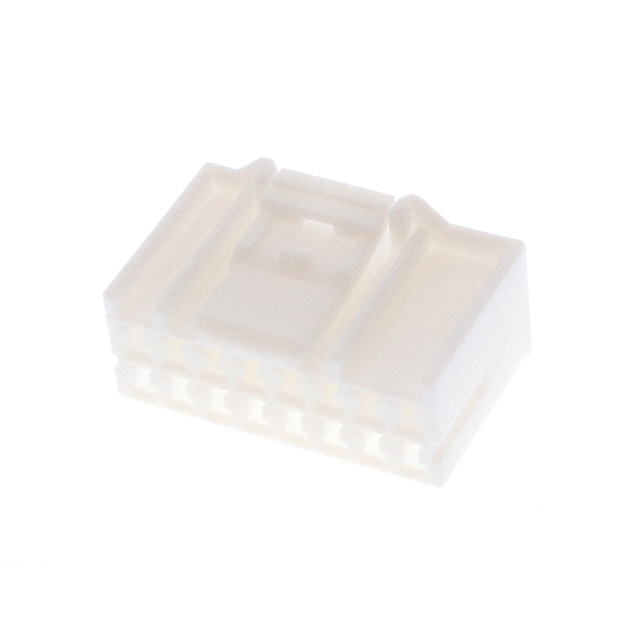

CONN PLUG HSG 16POS 4.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 16POS 4.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	936201-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in
Row Spacing	5 mm
Row Spacing	0.197 in

CONN PLUG HSG 16POS 4.00MM

Part	Fastening Type	Contact Type	Number of Rows	Mounting Type	Contact Termination	Row Spacing	Row Spacing	Insulation Material	Connector Type	Pitch [x]	Pitch [x]	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Note
TE Connectivity AMP Connectors 936201-1	Latch Lock	Female Socket	2	Free Hanging (In-Line)	Crimp	5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Plug	4 mm	0.157 in	Natural	16	-40 °C	80 C	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Plug Natural 0.157" (4.00mm)
