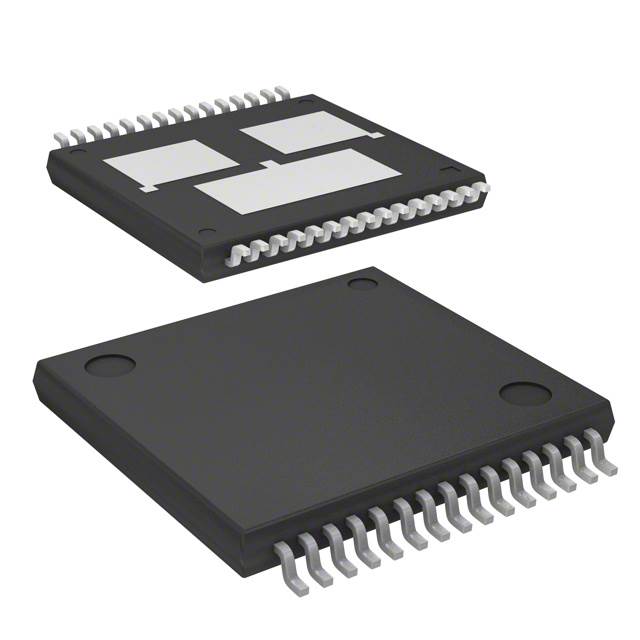

VNH2SP30TR-E

Active

STMicroelectronics

IC MTR DRV 5.5-16V MULTIPWRSO-30

Search across all available documentation for this part.

Active

STMicroelectronics

IC MTR DRV 5.5-16V MULTIPWRSO-30

Technical Specifications

Parameters and characteristics for this part

Specification	VNH2SP30TR-E

Current - Output	30 A
Function	Driver - Fully Integrated, Control and Power Stage
Grade	Automotive
Interface	PWM
Motor Type - AC, DC	Brushed DC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)
Package / Case	30-MPSO, MultiPowerSO
Supplier Device Package	MultiPowerSO-30
Technology	Power MOSFET
Voltage - Load [Max]	16 V
Voltage - Load [Min]	5.5 V
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC MTR DRV 5.5-16V MULTIPWRSO-30

Part	Motor Type - AC, DC	Technology	Grade	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Interface	Supplier Device Package	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]
STMicroelectronics VNH2SP30TR-E	Brushed DC	Power MOSFET	Automotive	Driver - Fully Integrated, Control and Power Stage	16 V	5.5 V	30-MPSO, MultiPowerSO	Surface Mount	150 °C	-40 °C	30 A	PWM	MultiPowerSO-30	Half Bridge (2)	16 V	5.5 V

General part information

Motor Driver Power MOSFET PWM MultiPowerSO-30
