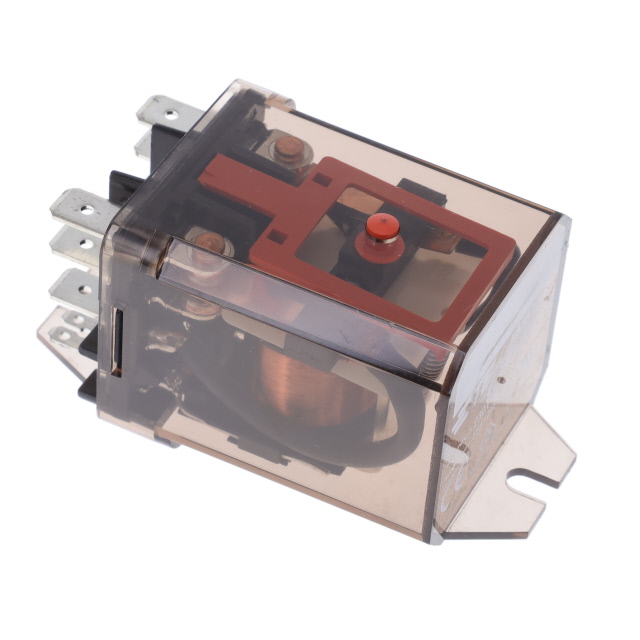

RM875730
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 25A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM875730 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 30.7 mA |
| Coil Resistance | 7500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 25 A |
| Load - Max Switching [Max] | 10000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RM8757 Series
General Purpose Relay DPDT (2 Form C) 230VAC Coil Chassis Mount
