SDB-15BMMA-QL7001

Active

Amphenol LTW

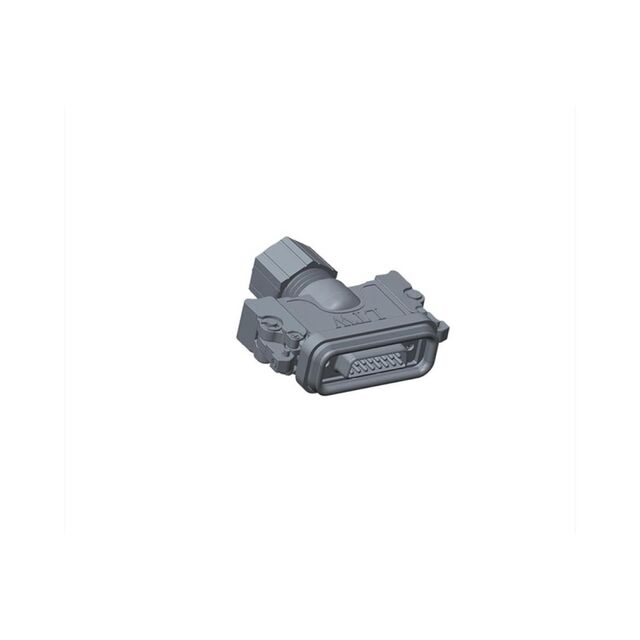

CONN D-SUB PLUG 15POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB PLUG 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-15BMMA-QL7001

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded, Automated Latch
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc
Shell Size, Connector Layout	2
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Contact Material	Number of Rows	Number of Positions	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material, Finish	Contact Type	Dielectric Material	Current Rating (Amps)	Connector Style	Contact Finish	Connector Type	Features	Ingress Protection	Mounting Type	Flange Feature	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol LTW SDB-15BMMA-QL7001	Copper Alloy	2	15	2	-40 °C	105 ░C	Black	Nickel Plated Zinc	Signal	Polybutylene Terephthalate (PBT)	5 A	D-Sub	Gold	Male Pins Plug	Automated Latch Shielded	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Flash	22 AWG	26 AWG
Amphenol LTW SDB-15BMMA-SJ7001	Copper Alloy	2	15	2	-40 °C	105 ░C	Black		Signal	Polybutylene Terephthalate (PBT)	5 A	D-Sub	Gold	Male Pins Plug	Shielded	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Housing/Shell (Unthreaded)
Amphenol LTW SDB-15BMMA-SL7001	Copper Alloy	2	15	2	-20 C	105 ░C	Black		Signal	Polybutylene Terephthalate (PBT)	5 A	D-Sub	Gold	Male Pins Plug	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 32.75

General part information

15 Position D-Sub Plug, Male Pins Connector
