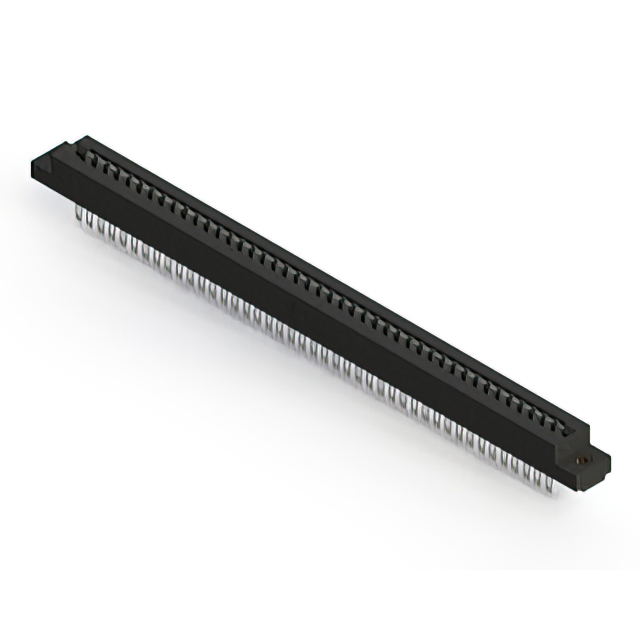

357-086-400-207

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-086-400-207

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-086-400-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

357-086 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Material - Insulation	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Material	Number of Rows	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Color	Termination	Number of Positions	Termination Rows	Read Out	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 357-086-420-278	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Through Hole	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Black	Solder	86	2	Dual	Non Specified - Dual Edge
EDAC Inc. 357-086-460-268	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Board Edge Straddle Mount	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder	86	2	Dual	Non Specified - Dual Edge
EDAC Inc. 357-086-424-202	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Through Hole	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder	86	2	Dual	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 357-086-460-204	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Board Edge Straddle Mount	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder	86	2	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 357-086-556-207	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Female	Gold	43	Copper Alloy	2	Semi Bellows	Board Edge Straddle Mount	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	Black	Solder	86	2	Dual	Non Specified - Dual Edge			10 Áin	0.25 Ám
EDAC Inc. 357-086-555-207	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Female	Gold	43	Copper Alloy	2	Semi Bellows	Board Edge Straddle Mount	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	Black	Solder Eyelet(s)	86	2	Dual	Non Specified - Dual Edge			10 Áin	0.25 Ám
EDAC Inc. 357-086-400-202	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Through Hole	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder Eyelet(s)	86	2	Dual	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 357-086-459-268	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Through Hole Right Angle	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Black	Solder	86	2	Dual	Non Specified - Dual Edge
EDAC Inc. 357-086-526-202	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Female	Gold		Copper Alloy	2	Semi Bellows		0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder				Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 357-086-400-207	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Female	Tin	43	Copper Alloy	2	Semi Bellows	Through Hole	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Black	Solder Eyelet(s)	86	2	Dual	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.51
Newark	Each	1	$ 22.64
		100	$ 13.28
		250	$ 11.99
		500	$ 10.67
		1000	$ 8.67

Description

General part information

357-086 Series

86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
