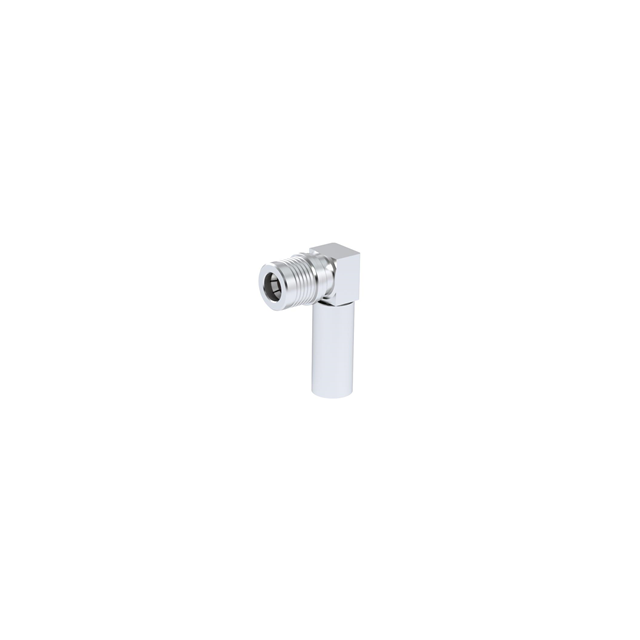

R123W177110

Active

Radiall USA, Inc.

RF QMA CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF QMA CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R123W177110

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	WQMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Dielectric Material	Ingress Protection	Fastening Type	Connector Type	Cable Group	Shield Termination	Mounting Type	Number of Ports	Connector Style	Voltage Rating	Body Finish	Body Material	Contact Termination	Frequency - Max [Max]	Housing Color	Center Contact Material	Center Contact Plating	Impedance	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R123W177110	Polytetrafluoroethylene (PTFE)	IP68 - Dust Tight Waterproof	Snap-On	Male Pin Plug	LMR-240	Crimp	Free Hanging (In-Line) Right Angle	1	WQMA	335 V	White Bronze	Brass	Crimp	6000 MHz	Silver	Brass	Gold	50 Ohms	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WQMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
