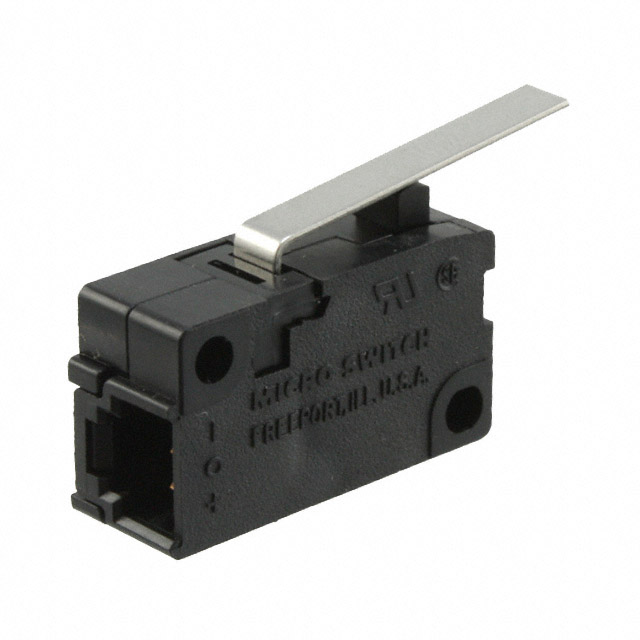

VX10-A2

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT DGTL OC 10MA 24V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT DGTL OC 10MA 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT DGTL OC 10MA 24V

Part	Actuator Type	Circuit	Current Rating (Amps)	Voltage Rating - DC	Operating Position	Operating Position	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Termination Style	Operating Force	Differential Travel	Differential Travel	Overtravel	Overtravel
Honeywell Sensing and Productivity Solutions VX10-A2	Lever, Straight	Digital, Open Collector	10 mA	24 V	13.94 mm	0.549 in	Chassis Mount	-40 °C	70 °C	Off-Mom	Connector	5 gf	0.1 mm	0.004 in	2.16 mm	0.085 in
Honeywell Sensing and Productivity Solutions VX10-A3	Lever, Straight	Digital, Open Collector	10 mA	24 V	12.6 mm	0.497 in	Chassis Mount	-40 °C	70 °C	Off-Mom	Connector	3 gf	0.2 mm	0.008 in	4.06 mm	0.16 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch Digital, Open Collector Chassis Mount
