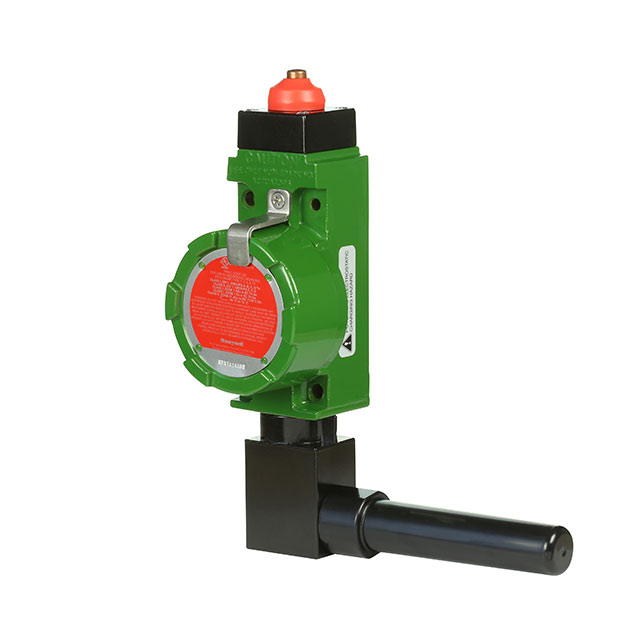

WBX1A14ABC
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT
Deep-Dive with AI
Search across all available documentation for this part.
WBX1A14ABC
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WBX1A14ABC | WBX1A Series |
|---|---|---|
| Actuator Type | Round (Pin Plunger) | Side Rotary - No Lever, Round (Pin Plunger) |
| Circuit | SPDT | SPDT |
| Differential Travel | 0.5 mm | 0.5 mm |
| Differential Travel | 0.02 in | 0.02 - 7 ° |
| Features | - | Actuator Mounted Left Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Force | 2041 gf | 46 - 2041 gfm |
| Operating Position | 57.94 mm | 57.94 mm |
| Operating Position | 2.281 in | 2.281 in |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overtravel | 4.8 mm | 4.8 mm |
| Overtravel | 0.19 in | 0.19 - 60 ° |
| Pretravel | 1.78 mm | 1.78 mm |
| Pretravel | 0.07 " | 0.07 - 17.5 ° |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Wireless | Connector, Wireless |
WBX1A Series
SWITCH SNAP ACTION SPDT
| Part | Circuit | Pretravel | Mounting Type | Switch Function | Ingress Protection | Differential Travel | Actuator Type | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Overtravel | Termination Style | Operating Position | Operating Position | Differential Travel | Pretravel | Overtravel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions WBX1A00ABA | SPDT | 17.5 ° | Chassis Mount | On-Mom | IP67 - Dust Tight, Waterproof | 7 ° | Side Rotary - No Lever | 46 gfm | -40 °C | 70 °C | 60 ° | Connector | ||||||
Honeywell Sensing and Productivity Solutions WBX1A12ABC | SPDT | 0.07 " | Chassis Mount | On-Mom | IP67 - Dust Tight, Waterproof | 0.02 in | Round (Pin Plunger) | 2041 gf | -40 °C | 70 °C | 0.19 in | Wireless | 57.94 mm | 2.281 in | 0.5 mm | 1.78 mm | 4.8 mm | |
Honeywell Sensing and Productivity Solutions WBX1A00ABA4 | SPDT | 17.5 ° | Chassis Mount | On-Mom | IP67 - Dust Tight, Waterproof | 7 ° | Side Rotary - No Lever | 46 gfm | -40 °C | 70 °C | 60 ° | Connector | Actuator Mounted Left Side | |||||
Honeywell Sensing and Productivity Solutions WBX1A14ABC | SPDT | 0.07 " | Chassis Mount | On-Mom | IP67 - Dust Tight, Waterproof | 0.02 in | Round (Pin Plunger) | 2041 gf | -40 °C | 70 °C | 0.19 in | Wireless | 57.94 mm | 2.281 in | 0.5 mm | 1.78 mm | 4.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WBX1A Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
