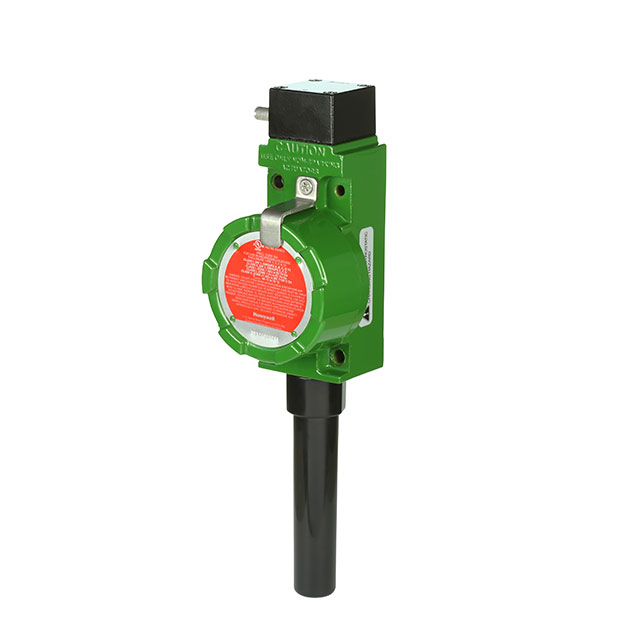

WBX1A00ABA

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WBX1A00ABA	WBX1A Series

Actuator Type	Side Rotary - No Lever	Side Rotary - No Lever, Round (Pin Plunger)
Circuit	SPDT	SPDT
Differential Travel	7 °	0.02 - 7 °
Differential Travel	-	0.5 mm
Features	-	Actuator Mounted Left Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	46 gfm	46 - 2041 gfm
Operating Position	-	57.94 mm
Operating Position	-	2.281 in
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	60 °	0.19 - 60 °
Overtravel	-	4.8 mm
Pretravel	17.5 °	0.07 - 17.5 °
Pretravel	-	1.78 mm
Switch Function	On-Mom	On-Mom
Termination Style	Connector	Connector, Wireless

SWITCH SNAP ACTION SPDT

Part	Circuit	Pretravel	Mounting Type	Switch Function	Ingress Protection	Differential Travel	Actuator Type	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Termination Style	Operating Position	Operating Position	Differential Travel	Pretravel	Overtravel	Features
Honeywell Sensing and Productivity Solutions WBX1A00ABA	SPDT	17.5 °	Chassis Mount	On-Mom	IP67 - Dust Tight, Waterproof	7 °	Side Rotary - No Lever	46 gfm	-40 °C	70 °C	60 °	Connector
Honeywell Sensing and Productivity Solutions WBX1A12ABC	SPDT	0.07 "	Chassis Mount	On-Mom	IP67 - Dust Tight, Waterproof	0.02 in	Round (Pin Plunger)	2041 gf	-40 °C	70 °C	0.19 in	Wireless	57.94 mm	2.281 in	0.5 mm	1.78 mm	4.8 mm
Honeywell Sensing and Productivity Solutions WBX1A00ABA4	SPDT	17.5 °	Chassis Mount	On-Mom	IP67 - Dust Tight, Waterproof	7 °	Side Rotary - No Lever	46 gfm	-40 °C	70 °C	60 °	Connector						Actuator Mounted Left Side
Honeywell Sensing and Productivity Solutions WBX1A14ABC	SPDT	0.07 "	Chassis Mount	On-Mom	IP67 - Dust Tight, Waterproof	0.02 in	Round (Pin Plunger)	2041 gf	-40 °C	70 °C	0.19 in	Wireless	57.94 mm	2.281 in	0.5 mm	1.78 mm	4.8 mm
