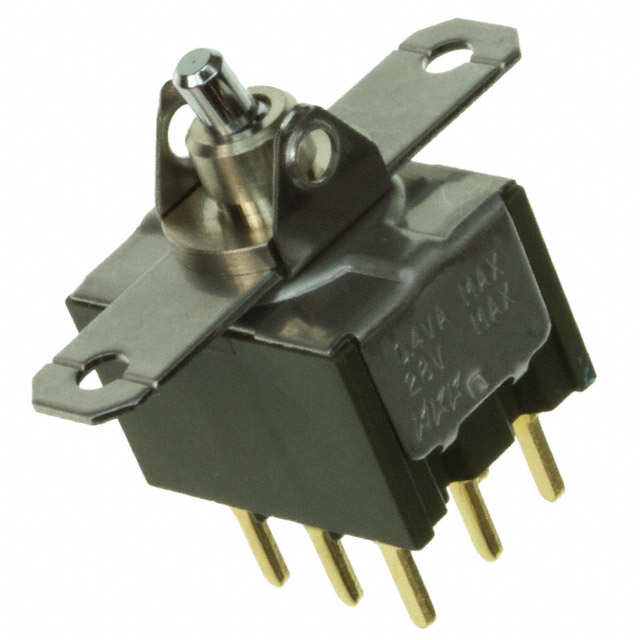

Specification	M2032TNG03

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	UL, CSA
Circuit	3PDT
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Panel Mount, Flange
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2032TN Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Actuator Marking	Switch Function	Actuator Type	Voltage Rating - AC	Mounting Type	Current Rating	Circuit	Termination Style	Features	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Color - Actuator/Cap
NKK Switches M2032TNG01	50000 Cycles	50000	Varies by Cap	On-On	Actuator Arm Cap Required	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug	Epoxy Sealed Terminals	28 V	85 °C	-30 °C	CSA UL
NKK Switches M2032TNW01-DC	50000 Cycles	25000	No Marking	On-On	Concave (Standard V)	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 °C	CSA UL	17.8 mm	Rectangular	10.1 mm	Red
NKK Switches M2032TNW01-FA	50000 Cycles	25000	No Marking	On-On	Concave (Standard V)	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 °C	CSA UL	12.7 mm	Rectangular	12.4 mm	Black
NKK Switches M2032TNG03	50000 Cycles	50000	Varies by Cap	On-On	Actuator Arm Cap Required	28 V	Flange Panel Mount	0.4 VA	3PDT	PC Pin	Epoxy Sealed Terminals	28 V	85 °C	-30 °C	CSA UL
NKK Switches M2032TNW01	50000 Cycles	25000	Varies by Cap	On-On	Actuator Arm Cap Required	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 °C	CSA UL
NKK Switches M2032TNG01-FB	50000 Cycles	50000	No Marking	On-On	Concave (Standard V)	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug		28 V	85 °C	-30 °C	CSA UL	12.7 mm	Rectangular	12.4 mm	White
NKK Switches M2032TNG01-DA	50000 Cycles	50000	No Marking	On-On	Concave (Standard V)	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug	Epoxy Sealed Terminals	28 V	85 °C	-30 °C	CSA UL	17.8 mm	Rectangular	10.1 mm	Black
