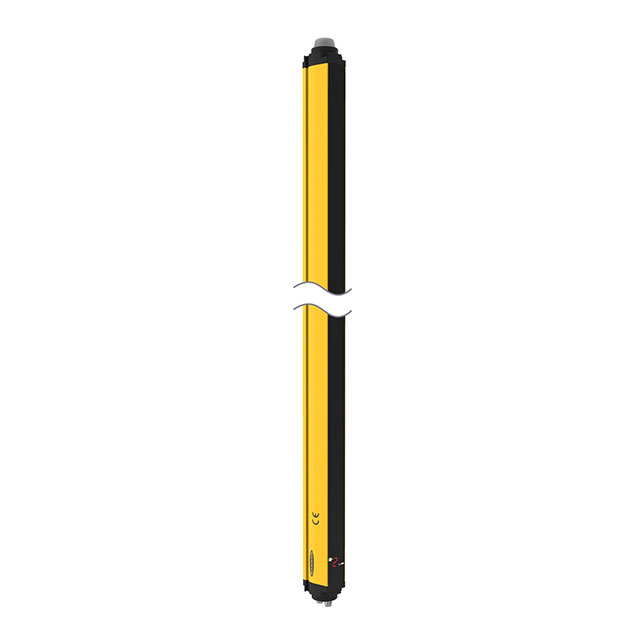

SGSMA2-500Q12

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMA2-500Q12

Beam Pitch	500 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	2
Operating Range [Max]	8 m
Operating Range [Min]	0.5 m
Protective Height [z]	500 mm
Voltage - Supply	24 VDC

Part	Ingress Protection	Voltage - Supply	Number of Beams	Features	Operating Range [Max]	Operating Range [Min]	Protective Height [z]	Beam Pitch
BANNER ENGINEERING SGSMA2-500Q12	IP65 - Dust Tight Water Resistant	24 VDC	2	Muting Function	8 m	0.5 m	500 mm	500 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 920.01
Newark	Each	1	$ 936.00

General part information

Light Curtain Muting Function

Technical documentation and resources

No documents available
