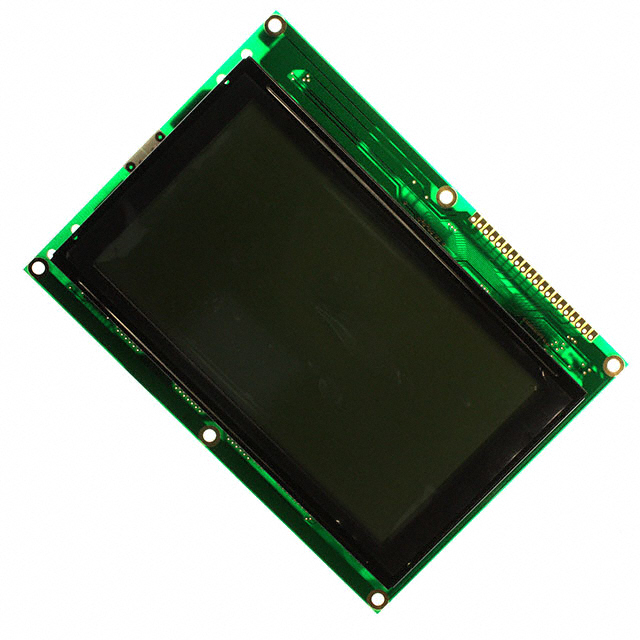

LCM-S240128GSF

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 240X128 W/LED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 240X128 W/LED

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD GRAPHIC 240X128 REFL STN

Part	Backlight	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels [x]	Dot Pixels [y]	Interface	Display Mode	Graphics Color	Display Type	Background Color	Viewing Area [y]	Viewing Area [x]	Dot Size [z]	Dot Size [y]
Lumex Opto/Components Inc. LCM-S240128GSR	Without Backlight	0.45 mm	0.45 mm	240 pixels	128	Parallel, 8-Bit	Reflective	Gray	STN - Super-Twisted Nematic	Green	64 mm	114 mm	0.4 mm	0.4 mm
Lumex Opto/Components Inc. LCM-S240128GSF		0.45 mm	0.45 mm	240 pixels	128	Parallel, 8-Bit	Transflective	Gray	STN - Super-Twisted Nematic	Green	64 mm	114 mm	0.4 mm	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	104	$ 81.75

General part information

Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 128
