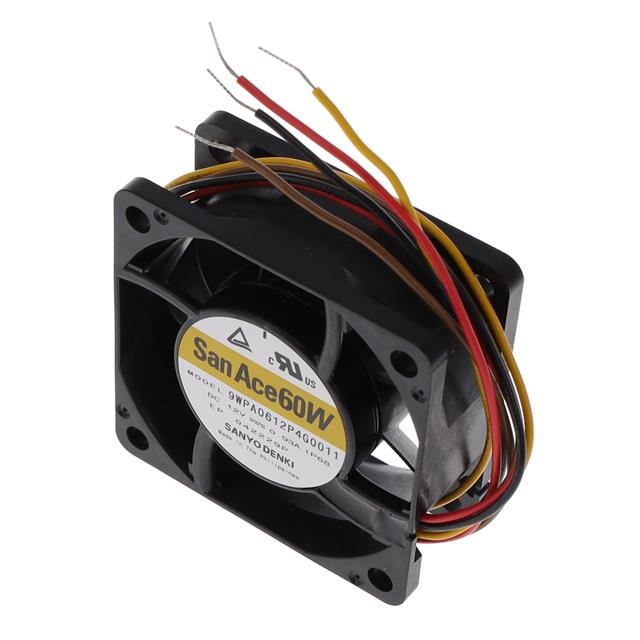

9WPA0612P4G0011

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WPA0612P4G0011	9WPA0612 Series

Air Flow	1.5 m³/min	1.5 m³/min
Air Flow	53.7 CFM	0.428 - 53.7 CFM
Air Flow	-	15.3 CFM
Bearing Type	Ball	Ball
Current Rating (Amps)	930 mA	0.09 - 930 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	56 dB	22 - 56 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	11.16 W	11.16 W
RPM	12000 RPM	3500 - 12000 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	1.44 in H2O	0.12 - 1.44 in H2O
Static Pressure	358.7 Pa	29.9 - 358.7 Pa
Termination	4 Wire Leads	4 Wire Leads, 4 Position Rectangular Connector
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	10.8 VDC	10.8 VDC
Weight	-	0.243 lb
Weight	-	110.22 g
Width [y]	25 mm	25 mm

FAN AXIAL 60X25MM 12VDC WIRE

Part	Air Flow	Air Flow	Width [y]	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Voltage - Rated	Termination	Static Pressure	Static Pressure	Lifetime @ Temp.	RPM	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Features	Noise	Material - Frame	Weight	Weight	Air Flow
Sanyo Denki America Inc. 9WPA0612P4G001	1.5 m³/min	53.7 CFM	25 mm	Ball	60 mm	60 mm	930 mA	12 VDC	4 Wire Leads	1.44 in H2O	358.7 Pa	40000 Hrs	12000 RPM	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	11.16 W	13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	56 dB	Plastic
Sanyo Denki America Inc. 9WPA0612P4G003		0.428 m³/min	25 mm	Ball	60 mm	60 mm	0.09 A	12 VDC	4 Position Rectangular Connector	0.12 in H2O	29.9 Pa	40000 Hrs	3500 RPM	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof		13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	22 dB(A)	Plastic	0.243 lb	110.22 g	15.3 CFM
Sanyo Denki America Inc. 9WPA0612P4G0011	1.5 m³/min	53.7 CFM	25 mm	Ball	60 mm	60 mm	930 mA	12 VDC	4 Wire Leads	1.44 in H2O	358.7 Pa	40000 Hrs	12000 RPM	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	IP68 - Dust Tight, Waterproof	11.16 W	13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	56 dB	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 53.7 CFM (1.50m³/min) 4 Wire Leads
