EDAC Inc.

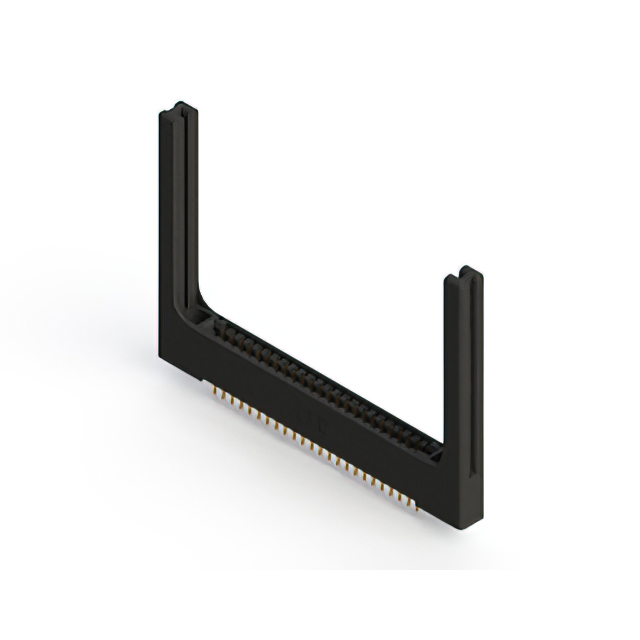

3.18MM CLAMP BOARD 48P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

396-048-556-258

Active

EDAC Inc.

3.18MM CLAMP BOARD 48P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	396-048-556-258

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	48
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

396-048 Series

...

Part	Material - Insulation	Termination	Contact Finish	Read Out	Flange Feature	Features	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions/Bay/Row [custom]	Contact Material	Number of Positions	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 396-048-540-878	Polyester Thermoplastic	Wire Wrap	Gold	Dual	4-40 Threaded Insert Top Mount Opening	Card Guides	0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 396-048-556-258	Polyester Thermoplastic	Solder	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 396-048-520-258	Polyester Thermoplastic	Solder	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 396-048-556-212	Polyester Thermoplastic	Solder	Gold	Dual	Flush Mount Side Opening Unthreaded	Card Extender	0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 396-048-540-202	Polyester Thermoplastic	Wire Wrap	Gold	Dual	Flush Mount Top Opening Unthreaded		0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 396-048-526-878	Polyester Thermoplastic	Solder	Gold	Dual	4-40 Threaded Insert Top Mount Opening	Card Guides	0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 396-048-522-803	Polyester Thermoplastic	Solder	Gold	Dual	Floating Bobbin Top Mount Opening		0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 396-048-560-202	Polyester Thermoplastic	Solder	Gold	Dual	Flush Mount Top Opening Unthreaded	Card Extender	0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 396-048-522-812	Polyester Thermoplastic	Solder	Gold	Dual	Side Mount Opening Unthreaded		0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge			3.25 mm	0.128 in
EDAC Inc. 396-048-520-807	Polyester Thermoplastic	Solder	Gold	Dual	M3 Threaded Insert Top Mount Opening		0.125 in	3.18 mm	2	24	Copper Alloy	48	Female	Black	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Cantilever	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.96
LCSC	Piece	1	$ 15.13
		200	$ 5.86
		500	$ 5.65
		1000	$ 5.55

Description

General part information

396-048 Series

48 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
