Q-25056000H2.5M

Active

Amphenol Custom Cable

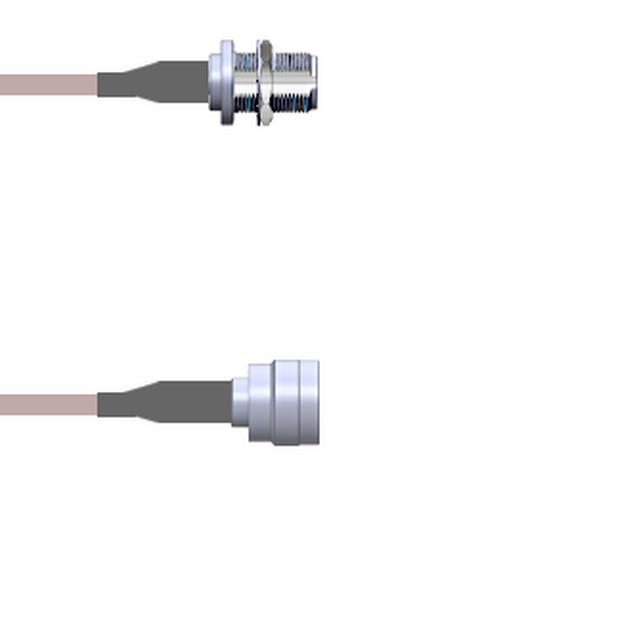

CBL ASSY NTYPE-TNC JACK-PLG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-25056000H2.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-25056000H2.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms

Q-250560 Series

Part	2nd Connector Mounting Type	1st Contact Gender	1st Connector	Length	Length	Length	Cable Type	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector Mounting Feature	Color	2nd Connector	Overall Impedance	Features
Amphenol Custom Cable Q-25056000H001M	Free Hanging (In-Line)	Female	N-Type Jack	1 m	3.3 ft	39.4 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H.75M	Free Hanging (In-Line)	Female	N-Type Jack	750 mm		29.53 "	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H012i	Free Hanging (In-Line)	Female	N-Type Jack	304.8 mm		12 "	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H003M	Free Hanging (In-Line)	Female	N-Type Jack	3 m	9.8 '	118.1 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H2.5M	Free Hanging (In-Line)	Female	N-Type Jack	2.5 m	8.2 '	98.4 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H024i	Free Hanging (In-Line)	Female	N-Type Jack	609.6 mm		24 "	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H036i	Free Hanging (In-Line)	Female	N-Type Jack	91.44 cm		36 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H002M	Free Hanging (In-Line)	Female	N-Type Jack	2 m	6.6 ft	78.7 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H009i	Free Hanging (In-Line)	Female	N-Type Jack	228.6 mm		9 "	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded
Amphenol Custom Cable Q-25056000H084i	Free Hanging (In-Line)	Female	N-Type Jack	2.1 m	7 ft	84 in	RG-142	Male	11 GHz	Panel Mount	Bulkhead - Front Side Nut	Copper	TNC Plug	50 Ohms	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 144.91
		25	$ 134.83
		50	$ 124.75
		100	$ 116.11
		250	$ 108.91

Description

General part information

Q-250560 Series

Cable Assembly Coaxial N-Type to TNC RG-142 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
