EDAC Inc.

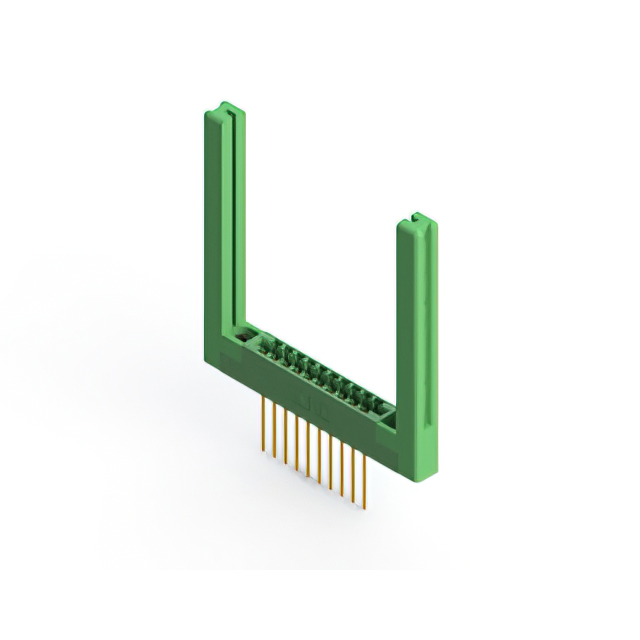

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Drawing EN +1

338-010-541-178

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	338-010-541-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	10
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

338-010 Series

Part	Features	Contact Type	Contact Material	Gender	Read Out	Flange Feature	Mounting Type	Contact Finish	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Color	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 338-010-541-178	Card Guides	Cantilever	Copper Alloy	Female	Single	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10
EDAC Inc. 338-010-541-103		Cantilever	Copper Alloy	Female	Single	Floating Bobbin Flush Mount	Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10	0.116 in	2.95 mm
EDAC Inc. 338-010-541-102		Cantilever	Copper Alloy	Female	Single	Flush Mount Top Opening Unthreaded	Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10	0.128 "	3.25 mm
EDAC Inc. 338-010-541-107		Cantilever	Copper Alloy	Female	Single	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10
EDAC Inc. 338-010-541-101		Cantilever	Copper Alloy	Female	Single		Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10
EDAC Inc. 338-010-541-158	Card Guides	Cantilever	Copper Alloy	Female	Single	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Gold	10	Non Specified - Single Edge	10 Áin	0.25 Ám	Green	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	125 °C	-65 ░C	1	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 28.87
Newark	Each	1	$ 33.54
		100	$ 29.34
		250	$ 26.09
		500	$ 23.48
		1000	$ 17.94

Description

General part information

338-010 Series

10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
