1-794068-0

Active

TE Connectivity AMP Connectors

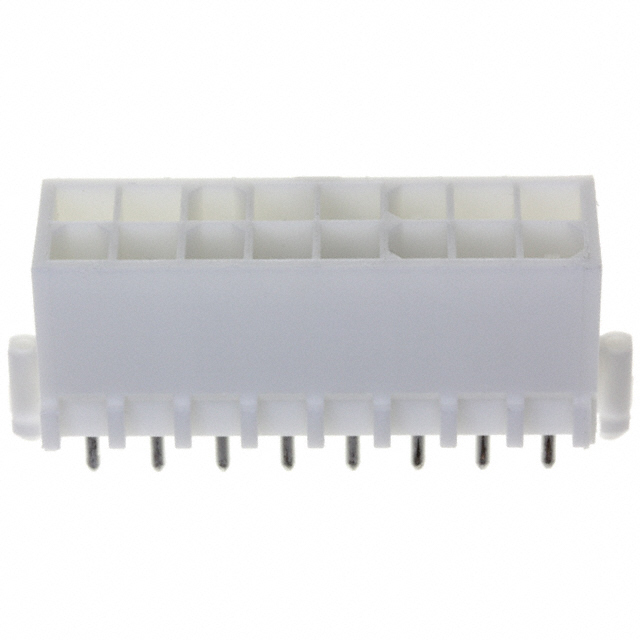

CONN HEADER VERT 16POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794068-0	794068 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	150 Áin	150 Áin
Contact Finish Thickness - Mating	3.81 Ám	3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 16POS 4.14MM

Part	Contact Material	Insulation Material	Insulation Color	Connector Type	Voltage Rating	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Applications	Number of Rows	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Current Rating (Amps)	Shrouding	Termination	Number of Positions Loaded	Style	Contact Type	Number of Positions	Contact Finish - Mating
TE Connectivity AMP Connectors 1-794068-0	Brass	Nylon, Polyamide (PA)	White	Header	600 VAC	Through Hole	Tin	13.5 mm	0.531 in	150 Áin	3.81 Ám	4.14 mm	0.163 in	4.14 mm	0.163 in	General Purpose	2	Circular	4.45 mm	0.175 in	150 Áin	3.81 Ám	Locking Ramp	85 °C	-20 C	UL94 V-0	Varies by Wire Gauge	Shrouded - 4 Wall	Solder	All	Board to Cable/Wire	Male Pin	16
TE Connectivity AMP Connectors 794068-1	Brass	Nylon, Polyamide (PA)	White	Header	600 VAC	Through Hole	Tin-Lead	13.5 mm	0.531 in	150 Áin	3.81 Ám	4.14 mm	0.163 in	4.14 mm	0.163 in	General Purpose	2	Circular	4.45 mm	0.175 in	150 Áin	3.81 Ám	Locking Ramp	85 °C	-20 C	UL94 V-0	Varies by Wire Gauge	Shrouded - 4 Wall	Solder	All	Board to Cable/Wire	Male Pin	16	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.163" (4.14mm)
