EXN-23357-RDP

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 119 MM, 115.1 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 119 MM, 115.1 MM, IP66

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

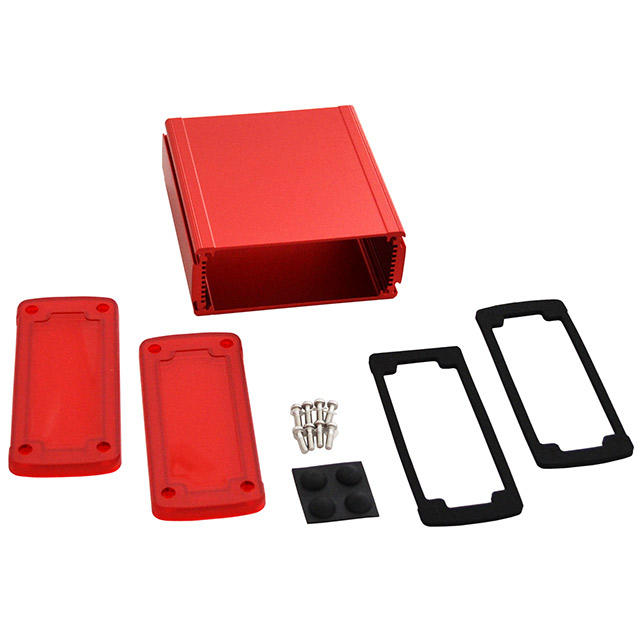

Box Metal, Aluminum with Plastic, Polycarbonate Panels Infra-Red, Red End Panel(s) 4.685" L x 4.531" W (119.00mm x 115.10mm) X 2.031" (51.60mm)

Technical documentation and resources

Specification	EXN-23357-RDP	EXN-23357 Series

Area (L x W)	136 cm²	136 cm²
Area (L x W)	21.1 in²	21.1 in²
Color	-	Black, Blue
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	51.6 mm	51.6 mm
Height [z]	2.031 in	2.031 in
Material	Metal, Polycarbonate Panels, Aluminum with Plastic	Metal, Polycarbonate Panels, Aluminum with Plastic, Aluminum
Material Flammability Rating	UL94 V-0	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	4.685 in	4.685 in
Size / Dimension [x]	119 mm	119 mm
Size / Dimension [y]	115.1 mm	115.1 mm
Size / Dimension [y]	4.531 in	4.531 in
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	0.62 lb	0.62 - 0.74 lb
Weight	281.23 g	281.23 - 335.66 g

Part	Weight	Weight	Material Flammability Rating	Material	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Design	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Ratings	Container Type	Thickness	Thickness	Color
BUD INDUSTRIES EXN-23357-BLP	0.62 lb	281.23 g	UL94 V-0	Aluminum with Plastic, Metal, Polycarbonate Panels	136 cm²	21.1 in²	51.6 mm	2.031 in	End Panel(s)	115.1 mm	4.531 in	4.685 in	119 mm	Card Guides, Sealing Gaskets	IP66	Box	0.091 in	2.3 mm
BUD INDUSTRIES EXN-23357-BL	0.74 lb	335.66 g		Aluminum, Metal	136 cm²	21.1 in²	51.6 mm	2.031 in	End Panel(s)	115.1 mm	4.531 in	4.685 in	119 mm	Card Guides, Sealing Gaskets	IP66	Box	0.091 in	2.3 mm	Black, Blue
BUD INDUSTRIES EXN-23357-RDP	0.62 lb	281.23 g	UL94 V-0	Aluminum with Plastic, Metal, Polycarbonate Panels	136 cm²	21.1 in²	51.6 mm	2.031 in	End Panel(s)	115.1 mm	4.531 in	4.685 in	119 mm	Card Guides, Sealing Gaskets	IP66	Box	0.091 in	2.3 mm
