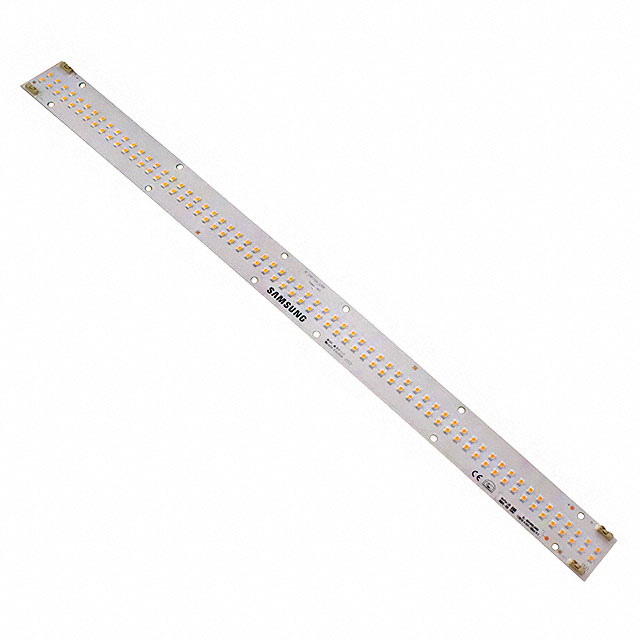

SL-B8V4N90LAWW

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 3000K

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED MOD H INFLUX LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-B8V4N90LAWW

Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	1.6 A
Current - Test	1 A
Height [z]	5.2 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	178 lm/W
Luminous Flux @ Current/Temperature	7910 lm
Size / Dimension [x]	560 mm
Size / Dimension [y]	41 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	118 °
Voltage - Forward (Vf) (Typ)	44.6 V

Part	Type	Current - Max [Max]	Configuration	CRI (Color Rendering Index)	Height [z]	Lumens/Watt @ Current - Test	Color	Temperature - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Type	Viewing Angle	Features	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature
Samsung Semiconductor, Inc. SL-B8V4N80L1WW	LED Module	1.38 A	Linear Light Strip	80	5.9 mm	126 lm/W	Warm White	65 °C	1.38 A	24.1 V	Flat	115 °	With Connector	39.6 mm	279.6 mm	4195 lm
Samsung Semiconductor, Inc. SL-B8V4N90LAWW	LED Module	1.6 A	Linear Light Strip	80	5.2 mm	178 lm/W	Warm White	55 °C	1 A	44.6 V	Flat	118 °		41 mm	560 mm	7910 lm
Samsung Semiconductor, Inc. SL-B8V7N90L1WW	LED Module	1.38 A	Linear Light Strip	80	5.9 mm	126 lm/W	Warm White	65 °C	1.38 A	48.2 V	Flat	115 °	With Connector	39.6 mm	559.5 mm	8390 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module H inFlux White, Warm Linear Light Strip
