JB15KH-6A

Active

NKK Switches

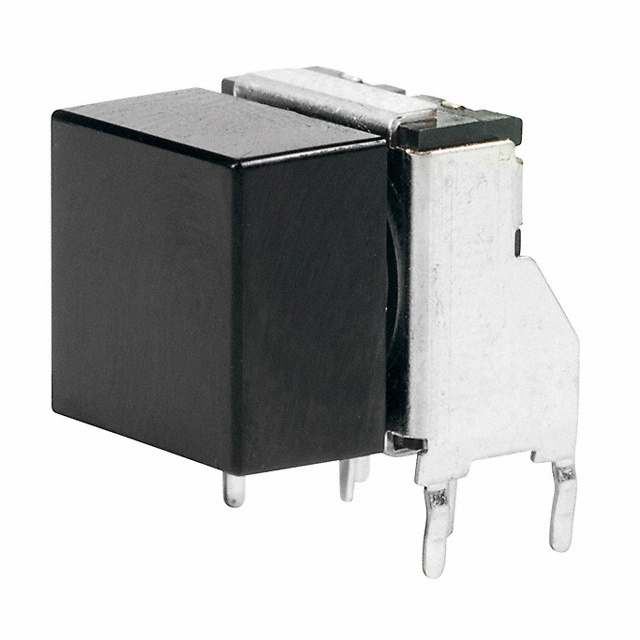

TACTILE SWITCH, JB SERIES, SIDE ACTUATED, THROUGH HOLE, SQUARE BUTTON, 176 GF, 50MA AT 24VDC

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, JB SERIES, SIDE ACTUATED, THROUGH HOLE, SQUARE BUTTON, 176 GF, 50MA AT 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	JB15KH-6A

Actuator Length, Right Angle [x]	7.76 mm
Actuator Material	Polyacetal
Actuator Orientation	Side Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	176 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10.8 mm
Outline [y]	6.54 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Mounting Type	Actuator Orientation	Actuator Type	Actuator Material	Termination Style	Illumination	Ingress Protection	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Operating Force	Switch Function	Features	Circuit	Mechanical Life	Contact Rating @ Voltage	Actuator Length, Right Angle [x]
NKK Switches JB15KH-6C	Through Hole Right Angle	Side Actuated	Square Button	Polyacetal	PC Pin	Non-Illuminated	IP67 - Dust Tight Waterproof	0.25 mm	70 °C	-25 °C	6.54 mm	10.8 mm	176 gf	Off-Mom	Process Sealed	SPST-NO	5000000 Cycles	0.05 A 24 VDC	7.76 mm
NKK Switches JB15KH-6H	Through Hole Right Angle	Side Actuated	Square Button	Polyacetal	PC Pin	Non-Illuminated	IP67 - Dust Tight Waterproof	0.25 mm	70 °C	-25 °C	6.54 mm	10.8 mm	176 gf	Off-Mom	Process Sealed	SPST-NO	5000000 Cycles	0.05 A 24 VDC	7.76 mm
NKK Switches JB15KH-6A	Through Hole Right Angle	Side Actuated	Square Button	Polyacetal	PC Pin	Non-Illuminated	IP67 - Dust Tight Waterproof	0.25 mm	70 °C	-25 °C	6.54 mm	10.8 mm	176 gf	Off-Mom	Process Sealed	SPST-NO	5000000 Cycles	0.05 A 24 VDC	7.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
