83027 0031000

Active

Belden Inc.

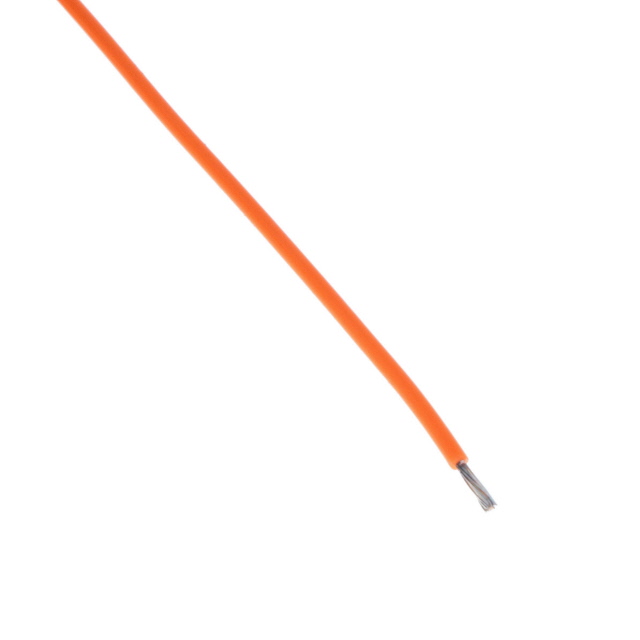

HOOK-UP STRND 20AWG ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

83027 0031000

Active

Belden Inc.

HOOK-UP STRND 20AWG ORANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83027 0031000

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	1.73 mm
Jacket (Insulation) Diameter [diameter]	0.068 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Qualification	MIL-W-16878/5
Ratings	UL Style 1180
Voltage	300 V
Wire Gauge	20 AWG

83027 Series

Part	Operating Temperature	Length [x]	Length [x]	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Cable Type	Features	Length	Length	Jacket Color
Belden Inc. 83027 009100	200 °C	30.5 m	100 ft	UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature
Belden Inc. 83027 0061000				UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature	1000 ft	304.8 m	Blue
Belden Inc. 83027 002100	200 °C	30.5 m	100 ft	UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature			Red
Belden Inc. 83027 0031000				UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature	1000 ft	304.8 m	Orange
Belden Inc. 83027 010100	200 °C	30.5 m	100 ft	UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature			Black
Belden Inc. 83027 007100		30.5 m	100 ft	UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature			Violet
Belden Inc. 83027 004100		30.5 m	100 ft	UL Style 1180	Copper Silver Coated	1.73 mm	0.068 in	20 AWG	300 V	Tetrafluoroethylene (TFE)	19	32 AWG	0.38 mm	0.015 in	MIL-W-16878/5	Hook-Up	High Temperature			Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.92

Description

General part information

83027 Series

20 AWG Hook-Up Wire 19/32 Orange 300V 1000.0' (304.8m)
