Description

General part information

R19138 Series

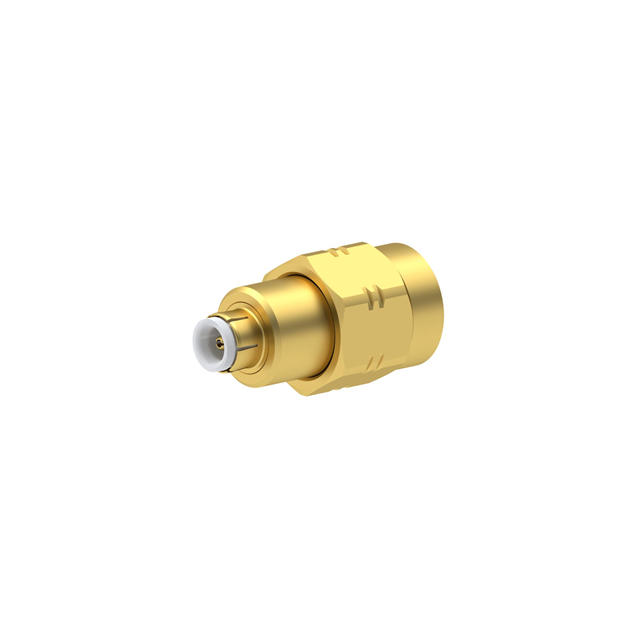

Adapter Coaxial Connector SMA Plug, Male Pin To MMBX Plug, Male Pin 50 Ohms

Technical Specifications

Parameters and characteristics for this part

Specification	R191389100

Adapter Series	SMA to MMBX
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, SMA Plug
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	MMBX Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	12.4 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Style	Straight

R19138 Series

Part	Frequency - Max	Fastening Type	Center Contact Plating	Style	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Series	Mounting Type	Convert From (Adapter End)	Conversion Type	Center Gender	Impedance	Adapter Type	Mating Cycles	Center Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Dielectric Material	Body Material	Center Contact Finish	Color	For Use With/Related Products	Accessory Type	Connector Style	Mounting Feature
Radiall USA, Inc. R191389200	12.4 GHz	Snap-On Threaded	Gold	Straight	MMBX Plug	Male Pin	SMA to MMBX	Free Hanging (In-Line)	Female Socket SMA Jack	Between Series	Female Male	50 Ohm	Plug to Jack	500 cycles	Beryllium Copper	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper
Radiall USA, Inc. R191389100	12.4 GHz	Snap-On Threaded	Gold	Straight	MMBX Plug	Male Pin	SMA to MMBX	Free Hanging (In-Line)	Male Pin SMA Plug	Between Series	Male	50 Ohm	Plug to Plug	500 cycles	Beryllium Copper	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R191389400	12.4 GHz	Snap-On Threaded	Gold	Straight	MMBX Jack	Female Socket	SMA to MMBX	Free Hanging (In-Line)	Female Socket SMA Jack	Between Series	Female	50 Ohm	Jack to Jack	500 cycles	Beryllium Copper	155 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R191389800															Beryllium Copper Brass			Gold		Brass	Gold	Gold	MMBX Jacks	Measurement Probe	SMA
Radiall USA, Inc. R191389300	12.4 GHz	Snap-On Threaded	Gold	Straight	MMBX Jack	Female Socket	SMA to MMBX	Free Hanging (In-Line)	Male Pin SMA Plug	Between Series	Female Male	50 Ohm	Plug to Jack	500 cycles	Beryllium Copper	155 °C	-55 °C	Gold	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	Brass
Radiall USA, Inc. R191386000	6000 MHz	Snap-On Threaded	Gold	Straight	MCX Jack	Female Socket	SMA to MCX	Free Hanging (In-Line)	Male Pin SMA Plug	Between Series	Female Male	50 Ohm	Plug to Jack	500 cycles	Beryllium Copper	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Stainless Steel
Radiall USA, Inc. R191381000	11 GHz	Threaded	Nickel	Straight	SMA Jack	Female Socket	SMA to N	Panel Mount	Female Socket N Jack	Between Series	Female	50 Ohm	Jack to Jack	500 cycles	Beryllium Copper	155 °C	-55 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass						Bulkhead
