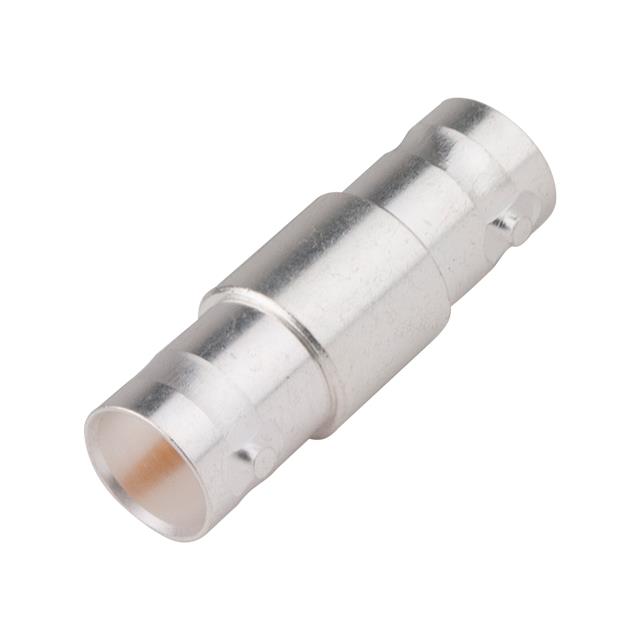

RFB-1734-2

Active

RF Industries

COAX ADAPT BNC TO BNC

Search across all available documentation for this part.

Active

RF Industries

COAX ADAPT BNC TO BNC

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1734-2

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

COAX ADAPT BNC TO BNC

Part	Center Gender	Convert From (Adapter End)	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Adapter Type	Convert To (Adapter End)	Fastening Type	Style	Adapter Series	Body Finish	Frequency - Max [Max]	Body Material	Center Contact Material	Impedance	Conversion Type	Mounting Type
RF Industries RFB-1734-2	Female to Female	BNC Jack, Female Socket	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Jack to Jack	BNC Jack, Female Socket	Bayonet Lock	Straight	BNC to BNC	Silver	2 GHz	Brass	Phosphor Bronze	75 Ohms	Same Series	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
