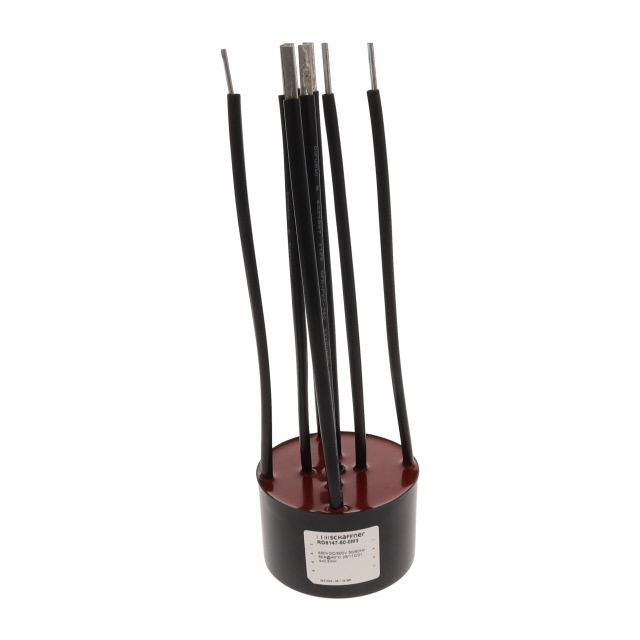

RD8147-50-0M3

Active

TE Connectivity Raychem Cable Protection

CMC 300UH 50A 4LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RD8147-50-0M3

Active

TE Connectivity Raychem Cable Protection

CMC 300UH 50A 4LN TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RD8147-50-0M3

Current Rating (Max)	50 A
DC Resistance (DCR) (Max)	1.75 mOhm
Filter Type	Power Line
Height (Max)	50.5 mm
Height (Max) [Max]	1.988 in
Inductance @ Frequency	300 µH
Mounting Type	Through Hole
Number of Lines	4
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Package / Case	Horizontal, 8 PC Pin
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Voltage Rating - AC	600 V
Voltage Rating - DC	850 V

Schaffner RD-Series Series

Part	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Inductance @ Frequency	Current Rating (Max) [Max]	Number of Lines	Filter Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]	Package / Case	Height (Max)	Current Rating (Max)
TE Connectivity Raychem Cable Protection RD7137-36-0M5	850 V	70 mm	2.756 in	70 mm	2.756 in	600 V	400 Hz 500 µH	36 A	3	Power Line	Through Hole	1.594 in	40.5 mm	-25 °C	110 °C	2.75 mOhm
TE Connectivity Raychem Cable Protection RD8147-36-0M8	850 V	80 mm	3.15 in	80 mm	3.15 in	600 V	800 µH	36 A	4	Power Line	Through Hole	1.988 in		-25 °C	110 °C		3 mOhm	Horizontal 8 PC Pin	50.5 mm
TE Connectivity Raychem Cable Protection RD7137-10-6M6	850 V	70 mm	2.756 in	70 mm	2.756 in	600 V	6.6 mH		3	Power Line	Through Hole	1.594 in	40.5 mm	-25 °C	110 °C	21.9 mOhm				10 A
TE Connectivity Raychem Cable Protection RD7137-25-1M3	850 V	70 mm	2.756 in	70 mm	2.756 in	600 V	1.3 mH		3	Power Line	Through Hole	1.594 in	40.5 mm	-25 °C	110 °C	4.45 mOhm				25 A
TE Connectivity Raychem Cable Protection RD7137-16-2M8	850 V	70 mm	2.756 in	70 mm	2.756 in	600 V	2.8 mH		3	Power Line	Through Hole	1.594 in	40.5 mm	-25 °C	110 °C	10.7 mOhm				16 A
TE Connectivity Raychem Cable Protection RD7137-6-12M0	850 V	70 mm	2.756 in	70 mm	2.756 in	600 V	1 kHz 12 mH		3	Power Line	Through Hole	1.594 in	40.5 mm	-25 °C	110 °C	60.6 mOhm				6 A
TE Connectivity Raychem Cable Protection RD8147-50-0M3	850 V	80 mm	3.15 in	80 mm	3.15 in	600 V	300 µH		4	Power Line	Through Hole	1.988 in		-25 °C	110 °C	1.75 mOhm		Horizontal 8 PC Pin	50.5 mm	50 A
TE Connectivity Raychem Cable Protection RD8147-16-3M0	850 V	80 mm	3.15 in	80 mm	3.15 in	600 V	3 mH		4	Power Line	Through Hole	1.988 in		-25 °C	110 °C	9.25 mOhm		Horizontal 8 PC Pin	50.5 mm	16 A
TE Connectivity Raychem Cable Protection RD8147-64-0M2	850 V	80 mm	3.15 in	80 mm	3.15 in	600 V	200 µH		4	Power Line	Through Hole	1.988 in		-25 °C	110 °C	1.1 mOhm		Horizontal 8 PC Pin	50.5 mm	64 A
TE Connectivity Raychem Cable Protection RD8147-25-1M3	850 V	80 mm	3.15 in	80 mm	3.15 in	600 V	1.3 mH		4	Power Line	Through Hole	1.988 in		-25 °C	110 °C	5.05 mOhm		Horizontal 8 PC Pin	50.5 mm	25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 65.41
		10	$ 55.33

Description

General part information

Schaffner RD-Series Series

300 µH @ 400 Hz 4 Line Common Mode Choke Through Hole 50A (Typ) DCR 1.75mOhm (Typ)
