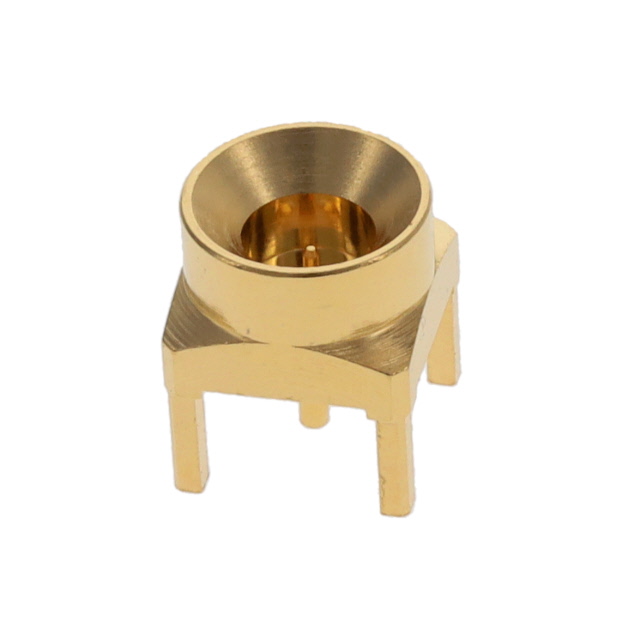

Specification	SMP-PC-P-GF-ST-TH2

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Catcher's Mitt
Frequency - Max	40 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

SMP-PC Series

Part	Center Contact Material	Shield Termination	Connector Style	Mounting Type	Number of Ports	Fastening Type	Contact Termination	Features	Impedance	Housing Color	Frequency - Max	Connector Type	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Material	Center Contact Plating	Voltage Rating
Samtec Inc. SMP-PC-P-HG-ST-TH2	Brass	Solder	SMP	Through Hole	1	Snap-On	Solder	Catcher's Mitt	50 Ohm	Gold	40 Gbps	Male Pin Plug	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	335 V
Samtec Inc. SMP-PC-P-GF-ST-TH2	Brass	Solder	SMP	Through Hole	1	Snap-On	Solder	Catcher's Mitt	50 Ohm	Gold	40 Gbps	Male Pin Plug	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	335 V
