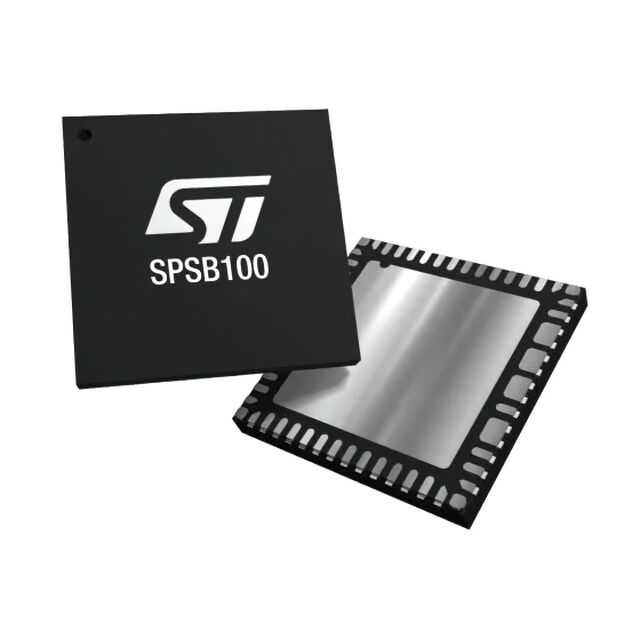

SPSB100BTR
ActivePOWER MANAGEMENT IC FOR HIGHLY INTEGRATED PROCESSORS
Deep-Dive with AI
Search across all available documentation for this part.
SPSB100BTR
ActivePOWER MANAGEMENT IC FOR HIGHLY INTEGRATED PROCESSORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPSB100BTR |
|---|---|
| Applications | Processor |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 56-VFQFPN (8x8) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.56 | |
| 10 | $ 5.84 | |||
| 25 | $ 5.42 | |||
| 100 | $ 4.94 | |||
| 250 | $ 4.72 | |||
| 500 | $ 4.58 | |||
| 1000 | $ 4.47 | |||
| Digi-Reel® | 1 | $ 7.56 | ||
| 10 | $ 5.84 | |||
| 25 | $ 5.42 | |||
| 100 | $ 4.94 | |||
| 250 | $ 4.72 | |||
| 500 | $ 4.58 | |||
| 1000 | $ 4.47 | |||
| Tape & Reel (TR) | 2000 | $ 4.05 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.74 | |
| 10 | $ 8.28 | |||
| 25 | $ 7.87 | |||
| 50 | $ 7.49 | |||
| 100 | $ 7.13 | |||
| 250 | $ 6.86 | |||
| 500 | $ 6.65 | |||
| 1000 | $ 6.50 | |||
Description
General part information
SPSB100 Series
The SPSB100 is a fully integrated automotive power management system IC, especially designed for highly integrated application processors (for example, Stellar G and P MCU families), offering low power mode and high current capability: the device comes with enhanced system power supply functionality.
It combines a 3-switch mode power supply together with two integrated linear voltage regulators. The device integrates a further 2 wake-up inputs and advanced fail-safe functionalities.
The boost controller is intended only to sustain cold cranking pulses, start stop and weak battery conditions for a transitory time.
