51-259.025

Active

EAO

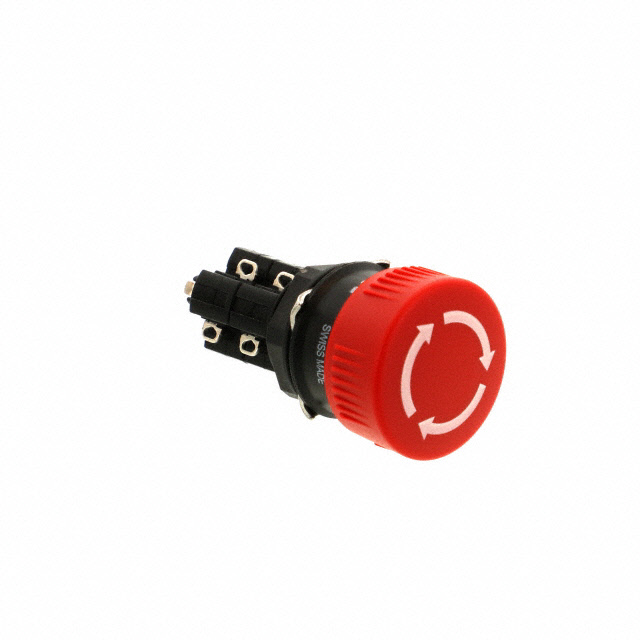

SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT

Search across all available documentation for this part.

Active

EAO

SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	51-259.025

Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Voltage Rating - AC	250 V

SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT

Part	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Switch Function	Circuit	Current Rating (Amps)	Reset Operation	Ingress Protection	Termination Style
EAO 51-259.025	16 mm	55 °C	-25 °C	Panel Mount, Front	250 V	Off-On, On-Off	4PST-2NO/2NC	5 A	Twist	IP65 - Dust Tight, Water Resistant	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH EMERGENCY STOP N.O./N.C. DPST/DPST MUSHROOM BUTTON 5A 250VAC SOLDER LUG PANEL MOUNT

Technical documentation and resources
