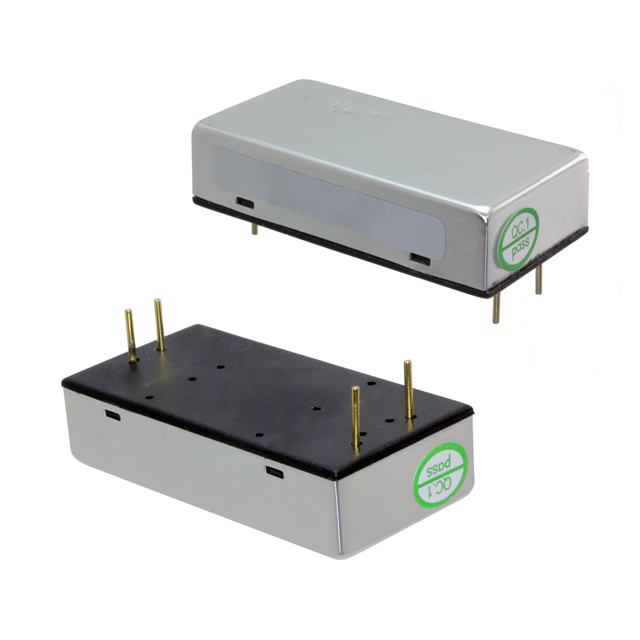

VG20-24S250

Active

Volgen + Furuno

DC DC CONVERTER 250V 20W

Search across all available documentation for this part.

Active

Volgen + Furuno

DC DC CONVERTER 250V 20W

Technical Specifications

Parameters and characteristics for this part

Specification	VG20-24S250

Applications	ITE (Commercial)
Current - Output (Max) [Max]	80 mA
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	4-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	12.7 mm
Supplier Device Package	4-DIP
Type	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	250 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Current - Output (Max) [Max]	Type	Features	Applications	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Supplier Device Package	Package / Case	Number of Outputs	Voltage - Output 1
Volgen + Furuno VG20-24S250	12.7 mm	25.4 mm	50.8 mm	50.8 mm	25.4 mm	12.7 mm	Through Hole	80 mA	High Voltage - Isolated Module	OCP OVP SCP	ITE (Commercial)	1.5 kV	-25 °C	70 °C	36 V	18 V	20 W	4-DIP	4-DIP Module	1	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Isolated Module DC DC Converter 1 Output 250V 80mA 18V - 36V Input
